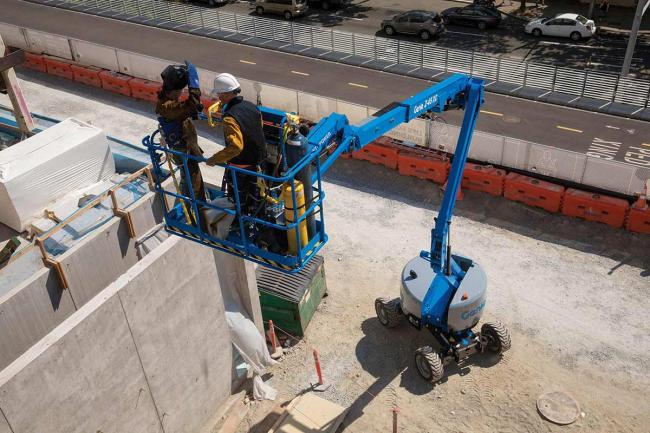

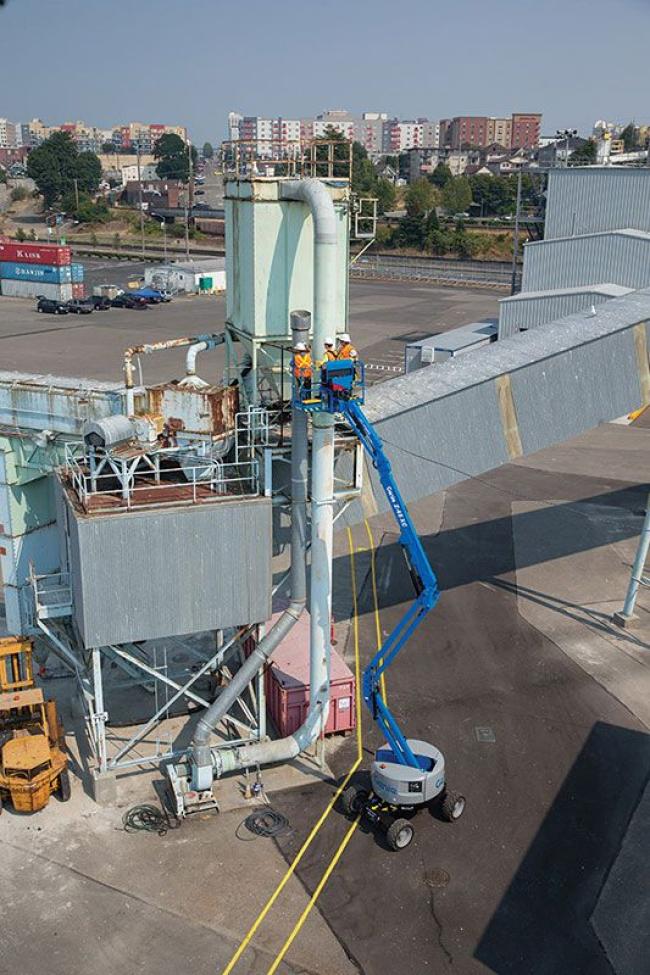

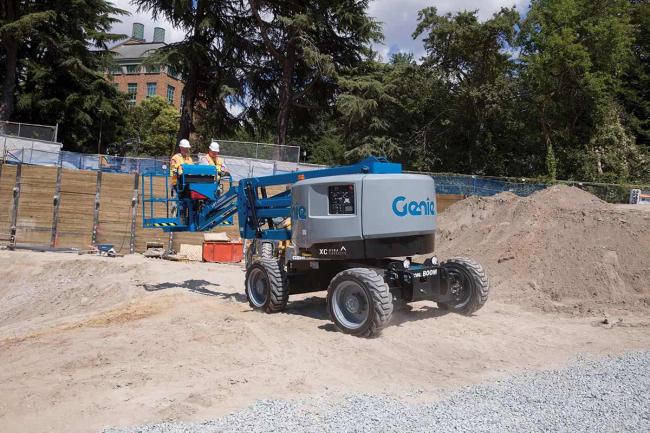

The Genie® Z®-45 XC articulating boom is the redesigned Xtra Capacity version of the popular rough-terrain Genie Z-45/25 J RT diesel powered articulating boom. It’s the first Genie XC articulating boom model, boasting the benefits of a dual-envelope design to provide an unrestricted platform capacity of 660 lb (300 kg) and a restricted capacity of 1,000 lb (454 kg).

It can be outfitted with the new Genie Lift Power™ generator solution that lets operators lift and drive during operation.

Overview

  • Load sense technology for accurate load weighing and zero-load field calibration
  • Rough terrain capabilities include 45% gradeability
  • Updated oscillating system boasts faster response time
  • Commonality in design and accessories with other Genie booms for easy parts stocking

Specifications

Max Horizontal Reach:
24 ft 9 in | 7.55 m
Max Up and Over Clearance (riser extended):
24 ft 5 in | 7.44 m
Max Working Height:
51 ft 6 in | 15.87 m
Platform Capacity:
660 lb Unrestricted, 1,000 lb Restricted | 300 kg Unrestricted, 454 kg Restricted

Options

Chassis Options

  • Tow package

Tires Options

  • Rough terrain foam-filled tires (petroleum based)
  • Rough terrain, non-marking foam-filled tires (water based)
  • Rough terrain, non-marking foam-filled tires (petroleum based)

Engine Options

  • 60 hp Ford MSG425 gas/LPG Dual Fuel
  • 48 hp (35.kW) Perkins 404F-E22T T4f
  • Cold weather kit: 5W-40 synthetic engine oil, oil pan heater, battery heater and hydraulic tank heater
  • Ford engine gauge package: oil pressure, temperature and voltage

Lift/Turntable Options

  • Specialty hydraulic oil  (28 gal - cold weather, fire resistant, or biodegradable)
  • LPG tank, 33.5 lb. capacity: Ford engine only
  • Hostile environment kit - cylinder bellows, boom wiper seals, lockable platform control box covers and air pre-cleaner

Platforms

  • 6 ft. dual entry platform with ½ height mesh inserts and side swing gate

Platform Options

  • Lift Power™ 3kW AC generator, 110V/60Hz or 220V/50Hz
  • Aircraft protection kit:  platform foam padding and padded disable system
  • Aircraft protection kit with swing gate
  • Light package: 2 chassis mounted drive lights, 2 platform mounted work lights
  • Lockable platform control box cover
  • Panel cradle package
  • Platform auxiliary top rail
  • Thumb rocker steering
  • Lift Power™ 12kW Welder - Select Lincoln or Miller
  • Lift Power™ 12kW Welder Ready package
  • Traveling fall arrest anchor system: requires 6ft platform
  • Specifications

    Specifications

    Max Horizontal Reach:
    24 ft 9 in | 7.55 m
    Max Up and Over Clearance (riser extended):
    24 ft 5 in | 7.44 m
    Max Working Height:
    51 ft 6 in | 15.87 m
    Platform Capacity:
    660 lb Unrestricted, 1,000 lb Restricted | 300 kg Unrestricted, 454 kg Restricted
  • Downloads & Documentation
  • Details

    Options

    Chassis Options

    • Tow package

    Tires Options

    • Rough terrain foam-filled tires (petroleum based)
    • Rough terrain, non-marking foam-filled tires (water based)
    • Rough terrain, non-marking foam-filled tires (petroleum based)

    Engine Options

    • 60 hp Ford MSG425 gas/LPG Dual Fuel
    • 48 hp (35.kW) Perkins 404F-E22T T4f
    • Cold weather kit: 5W-40 synthetic engine oil, oil pan heater, battery heater and hydraulic tank heater
    • Ford engine gauge package: oil pressure, temperature and voltage

    Lift/Turntable Options

    • Specialty hydraulic oil  (28 gal - cold weather, fire resistant, or biodegradable)
    • LPG tank, 33.5 lb. capacity: Ford engine only
    • Hostile environment kit - cylinder bellows, boom wiper seals, lockable platform control box covers and air pre-cleaner

    Platforms

    • 6 ft. dual entry platform with ½ height mesh inserts and side swing gate

    Platform Options

    • Lift Power™ 3kW AC generator, 110V/60Hz or 220V/50Hz
    • Aircraft protection kit:  platform foam padding and padded disable system
    • Aircraft protection kit with swing gate
    • Light package: 2 chassis mounted drive lights, 2 platform mounted work lights
    • Lockable platform control box cover
    • Panel cradle package
    • Platform auxiliary top rail
    • Thumb rocker steering
    • Lift Power™ 12kW Welder - Select Lincoln or Miller
    • Lift Power™ 12kW Welder Ready package
    • Traveling fall arrest anchor system: requires 6ft platform
