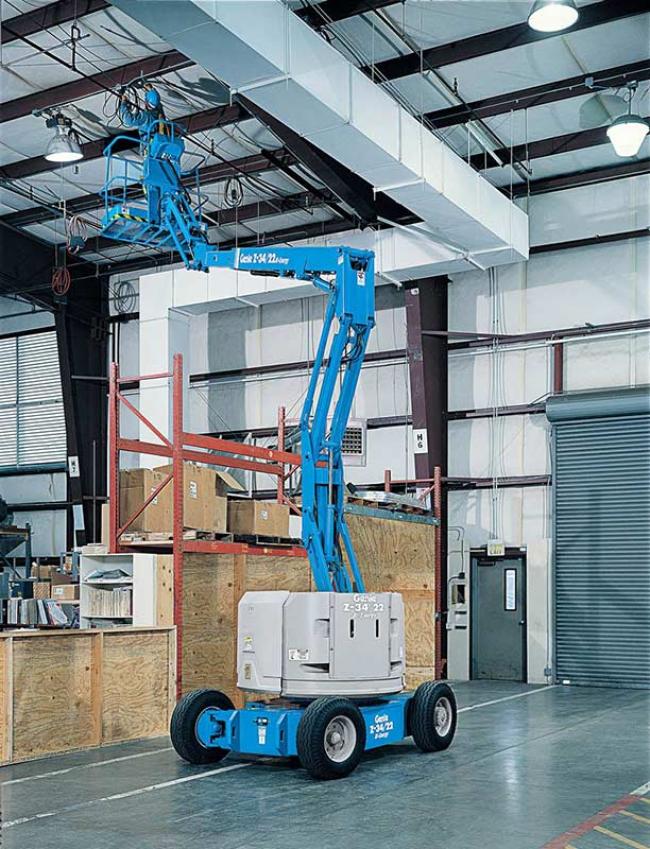

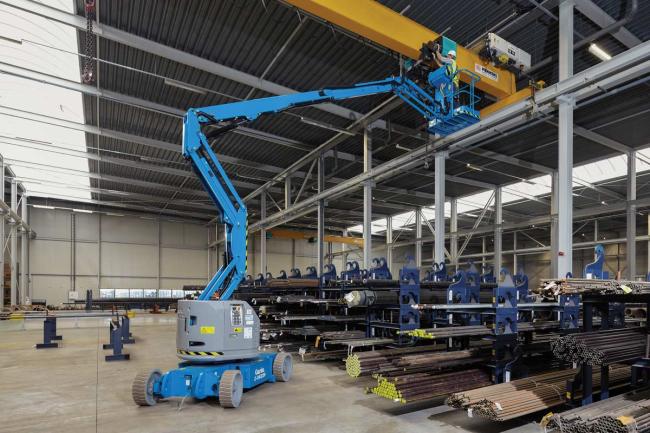

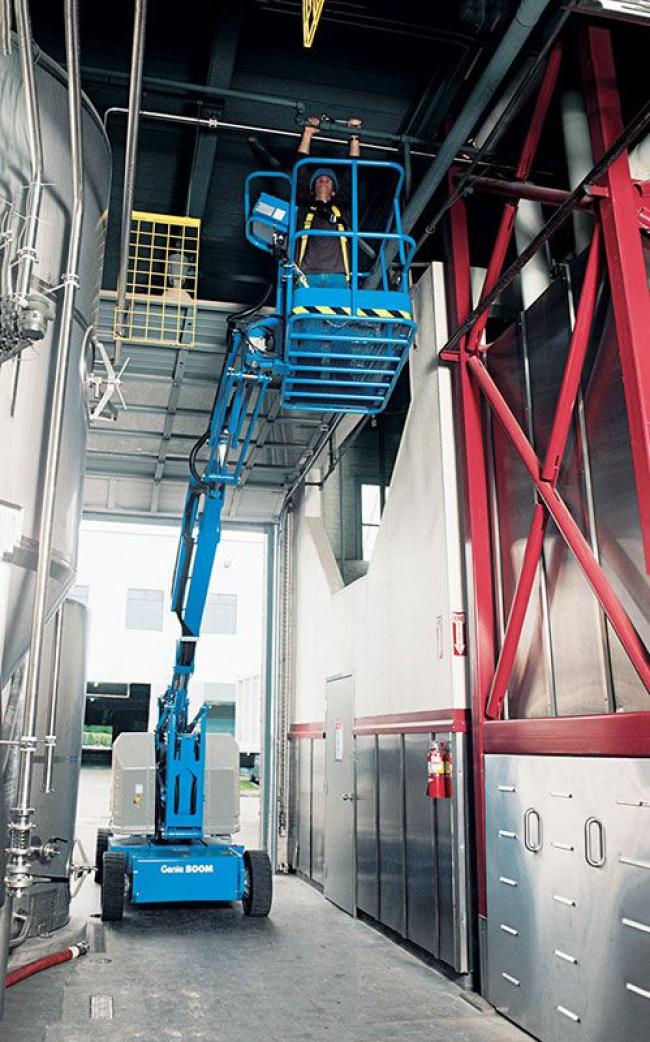

Genie Z-34/22 N
Boom Lifts
How can we help?
888-503-4685
The Genie® Z®-34/22 N electric articulating boom lift offers quiet, emission-free operation in the most sensitive work environments, as a 48V DC machine.
Overview
- 30% gradeability drive performance and 4.0 mph travel speed
- Motor controller eliminates the need for forward/reverse contactors or speed sensors, reducing complexity and improving reliability of the drive system
- Self-leveling platform features 180° powered horizontal rotation for precise positioning and easy operation
- Versatile 40 ft 6 in (12.52 m) working height, 22 ft 3 in (6.78 m) horizontal reach
The Genie® Z®-34/22 N electric articulating boom lift offers quiet, emission-free operation in the most sensitive work environments, as a 48V DC machine.
Overview
- 30% gradeability drive performance and 4.0 mph travel speed
- Motor controller eliminates the need for forward/reverse contactors or speed sensors, reducing complexity and improving reliability of the drive system
- Self-leveling platform features 180° powered horizontal rotation for precise positioning and easy operation
- Versatile 40 ft 6 in (12.52 m) working height, 22 ft 3 in (6.78 m) horizontal reach
Specifications
Max Horizontal Reach: |
22 ft 3 in | 6.78 m |
Max Up and Over Clearance (riser extended): |
15 ft 3 in | 4.65 m |
Max Working Height: |
40 ft 6 in | 12.52 m |
Platform Capacity: |
500 lbs | 227 kg |
Options
Certification Options
- EE rating, DC only
Lift/Turntable Options
- AGM maintenance-free batteries
- Battery charge indicator (BCI) (standard on Bi-Energy model)
- Specialty hydraulic oil (6 gal - cold weather, fire resistant, or biodegradable)
- Low voltage interrupt with BCI (DC only)
- Low voltage interrupt with BCI (Bi-Energy only)
- Power inverter, 800W, 120V AC, 60 Hz (DC only)
- Hostile environment kit: cylinder bellows, boom wiper seals and lockable platform control box covers
Platforms
- 4 ft. platform
Platform Options
- Air line to platform: ? in. inner diameter
- Aircraft protection kit: platform foam padding and padded disable system
- Light package: 2 chassis mounted drive lights, 2 platform mounted work lights
- Lockable platform control box cover
- Platform with ½ height mesh inserts and swing gate
- Platform auxiliary top rail
- Platform swing gate
-
Specifications
Specifications
Max Horizontal Reach:
22 ft 3 in | 6.78 m Max Up and Over Clearance (riser extended):
15 ft 3 in | 4.65 m Max Working Height:
40 ft 6 in | 12.52 m Platform Capacity:
500 lbs | 227 kg - Downloads & Documentation
-
Details
Options
Certification Options
- EE rating, DC only
Lift/Turntable Options
- AGM maintenance-free batteries
- Battery charge indicator (BCI) (standard on Bi-Energy model)
- Specialty hydraulic oil (6 gal - cold weather, fire resistant, or biodegradable)
- Low voltage interrupt with BCI (DC only)
- Low voltage interrupt with BCI (Bi-Energy only)
- Power inverter, 800W, 120V AC, 60 Hz (DC only)
- Hostile environment kit: cylinder bellows, boom wiper seals and lockable platform control box covers
Platforms
- 4 ft. platform
Platform Options
- Air line to platform: ? in. inner diameter
- Aircraft protection kit: platform foam padding and padded disable system
- Light package: 2 chassis mounted drive lights, 2 platform mounted work lights
- Lockable platform control box cover
- Platform with ½ height mesh inserts and swing gate
- Platform auxiliary top rail
- Platform swing gate
