Genie Z-40/23 N and Z-40/23 N RJ
Boom Lifts
How can we help?
888-503-4685

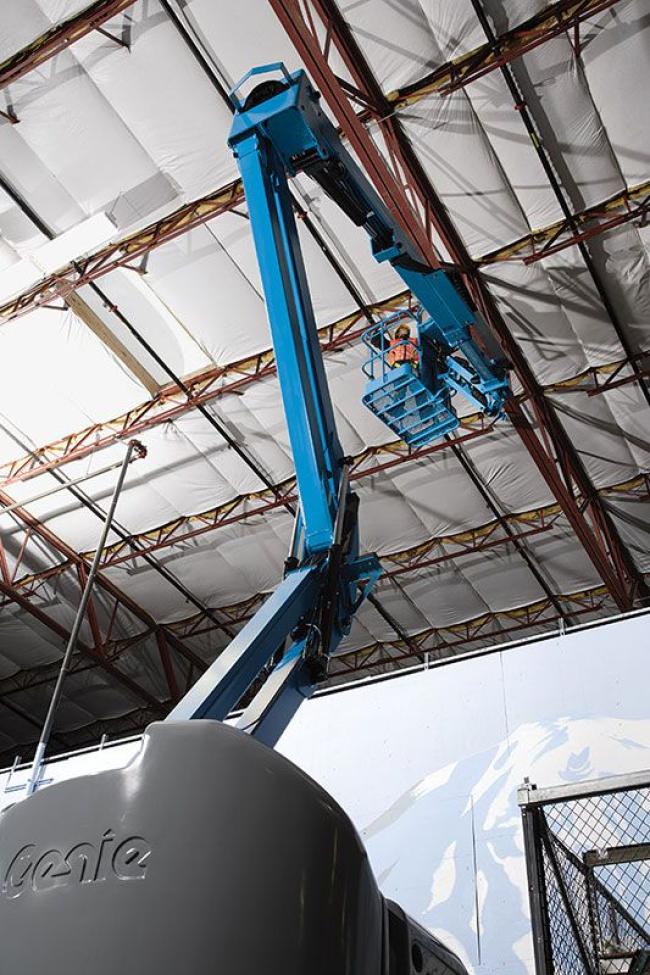

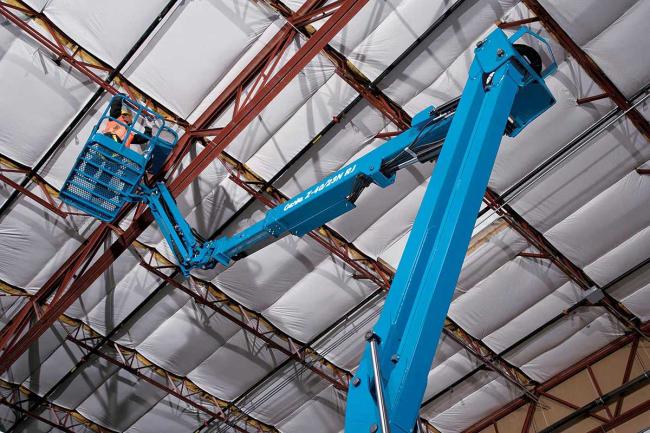

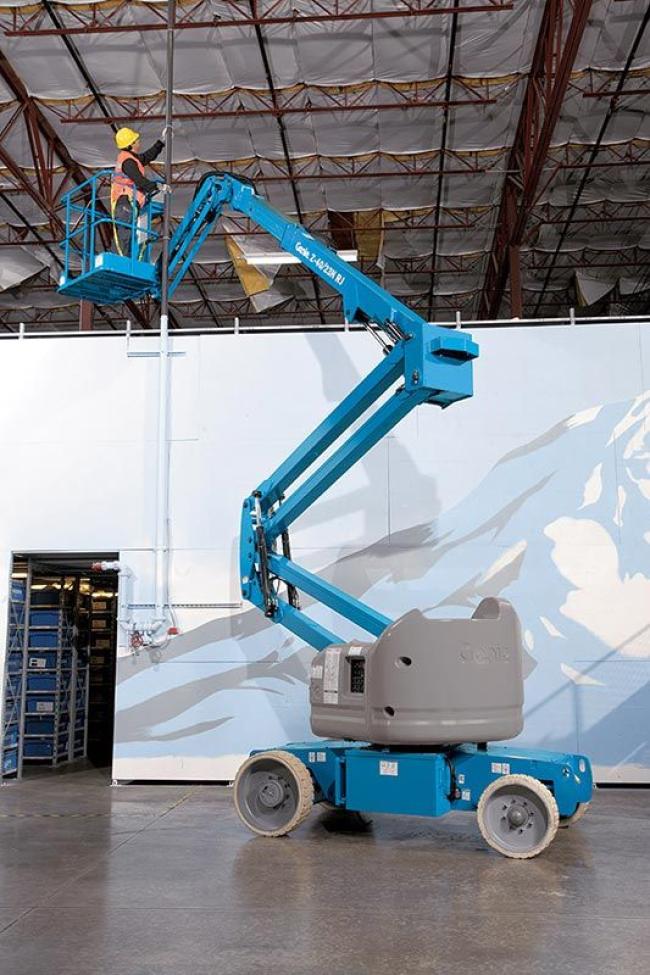

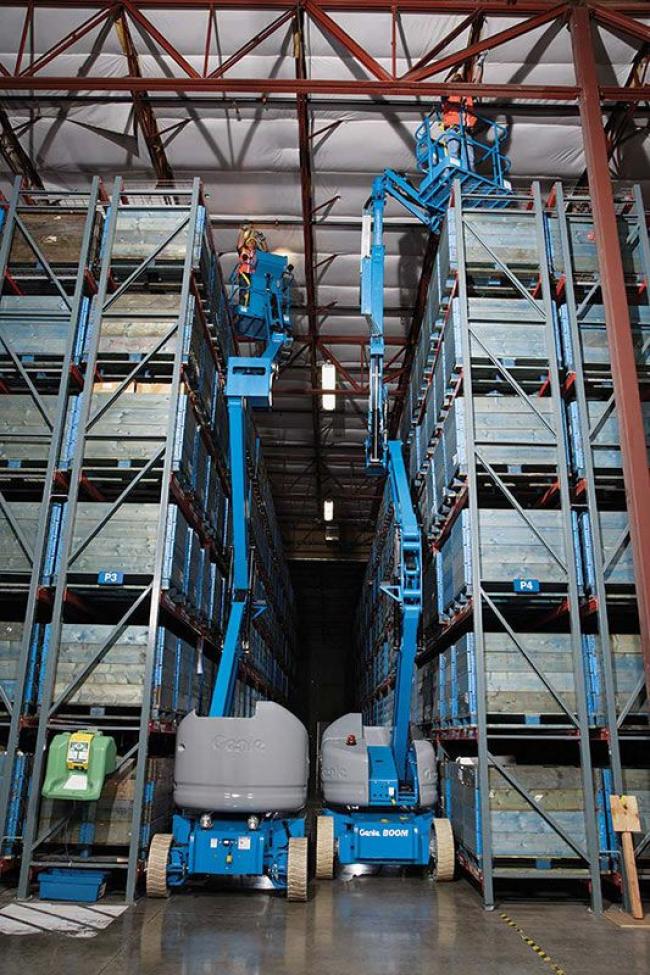

The Genie® Z®-40/23 N and Z®-40/23 N RJ electric articulating boom lifts offer quiet, emission-free operation in the most sensitive work environments.
Overview
- Perfect to work in congested areas with 4 ft 11 in (1.50 m) wide chassis and 2 ft. 8 in. (87 cm) turning radius
- Proportional lift and drive controls for precise adjustments in tight areas
- 30% gradeability drive performance and 4.0 mph travel speed
- 34 V three-phase AC drive system contains fewer parts and simplifies maintenance
The Genie® Z®-40/23 N and Z®-40/23 N RJ electric articulating boom lifts offer quiet, emission-free operation in the most sensitive work environments.
Overview
- Perfect to work in congested areas with 4 ft 11 in (1.50 m) wide chassis and 2 ft. 8 in. (87 cm) turning radius
- Proportional lift and drive controls for precise adjustments in tight areas
- 30% gradeability drive performance and 4.0 mph travel speed
- 34 V three-phase AC drive system contains fewer parts and simplifies maintenance
Specifications
Max Horizontal Reach: |
22 ft 8 in | 6.91 m |
Max Up and Over Clearance (riser extended): |
21 ft 3 in | 6.48 m |
Max Working Height: |
46 ft 5 in | 12.32 m |
Platform Capacity: |
500 lb | 227 kg |
Links
Options
Lift/Turntable Options
- AGM maintenance-free batteries
- Specialty hydraulic oil (11 gal - cold weather, fire resistant, or biodegradable)
- Power inverter, 800W, 120V AC, 60 Hz
- Hostile environment kit: cylinder bellows, boom wiper seals and platform control box covers
Platforms
- 4 ft. 8 in. steel platform: not available with rotating jib
Platform Options
- Air line to platform: ? in. inner diameter
- Entry toe boards
- Light package: 2 chassis mounted drive lights, 2 platform mounted work lights
- Lockable platform control box cover
- Platform swing gate
- Platform auxiliary top rail
- Platform with ½ height mesh inserts and swing gate
-
Specifications
Specifications
Max Horizontal Reach:
22 ft 8 in | 6.91 m Max Up and Over Clearance (riser extended):
21 ft 3 in | 6.48 m Max Working Height:
46 ft 5 in | 12.32 m Platform Capacity:
500 lb | 227 kg - Downloads & Documentation
-
Details
Options
Lift/Turntable Options
- AGM maintenance-free batteries
- Specialty hydraulic oil (11 gal - cold weather, fire resistant, or biodegradable)
- Power inverter, 800W, 120V AC, 60 Hz
- Hostile environment kit: cylinder bellows, boom wiper seals and platform control box covers
Platforms
- 4 ft. 8 in. steel platform: not available with rotating jib
Platform Options
- Air line to platform: ? in. inner diameter
- Entry toe boards
- Light package: 2 chassis mounted drive lights, 2 platform mounted work lights
- Lockable platform control box cover
- Platform swing gate
- Platform auxiliary top rail
- Platform with ½ height mesh inserts and swing gate
