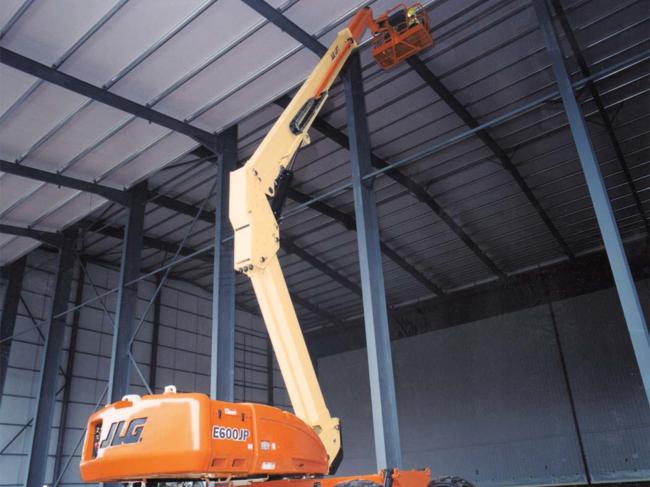

JLG Equipment E600JP
Boom Lifts
How can we help?
888-503-4685
Features
-
Environmentally friendly – zero emissions, reduced noise and standard non-marking tires
-
Maneuverability – move over uneven surfaces with Automatic Traction Control
-
Highest electric boom in the industry
-
Productivity – work longer with longer duty cycles
Specifications
Batteries: |
8 x 6V, 415 amp-hr |
Capacity - Hydraulic Reservoir: |
15 gal. / 56.78 L |
Drive Speed - Platform Lowered: |
3 mph / 4.83 km/h |
Electrical System: |
48 Volts DC |
Gradeability - 2WD: |
30 % |
Gradeability - 4WD: |
45 % |
Ground Clearance: |
1 ft / 0.3 m |
Horizontal Jib Rotation: |
180 Degrees |
Horizontal Outreach: |
44 ft 5 in. / 13.54 m |
Jib - Range of articulation: |
145 Degrees |
Machine Height: |
8 ft 4 in. / 2.54 m |
Machine Length: |
33 ft 4 in. / 10.16 m |
Machine Weight: |
15750 lb / 7144.08 kg |
Machine Width: |
7 ft 11 in. / 2.41 m |
Platform Capacity: |
500 lb / 226.80 kg |
Platform Dimension A: |
2 ft 6 in. / 0.76 m |
Platform Dimension B: |
6 ft / 1.83 m |
Platform Height: |
60 ft 4 in. / 18.39 m |
Swing: |
400 Degrees |
Swing Type: |
Non-Continuous |
Tailswing: |
4 ft / 1.22 m |
Tire Size: |
36 x 14-22.5 Non-marking Pnuematic |
Turning Radius - Outside: |
15 ft 4 in. / 4.67 m |
Wheelbase: |
9 ft / 2.74 m |
