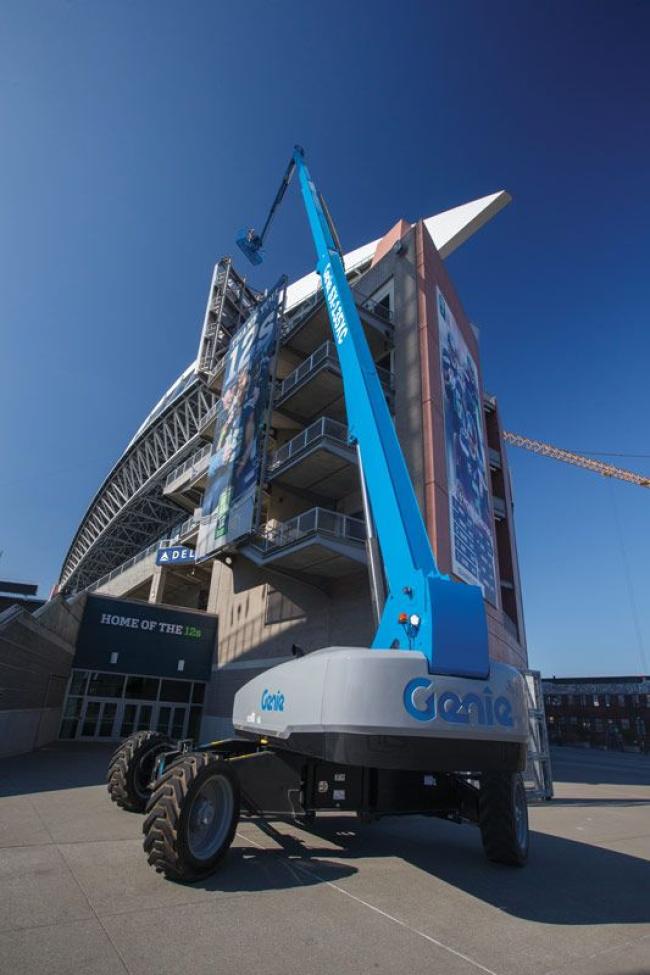

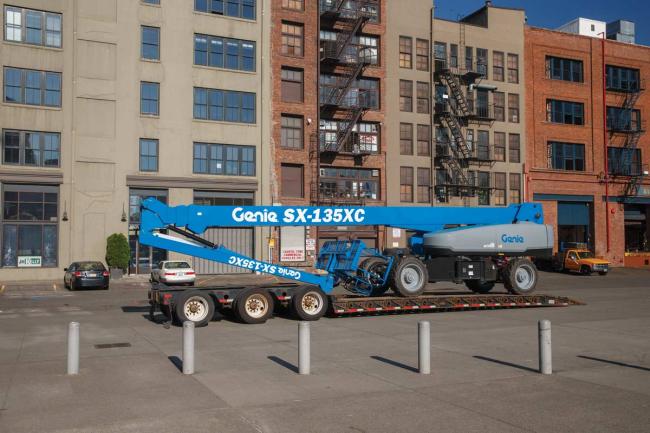

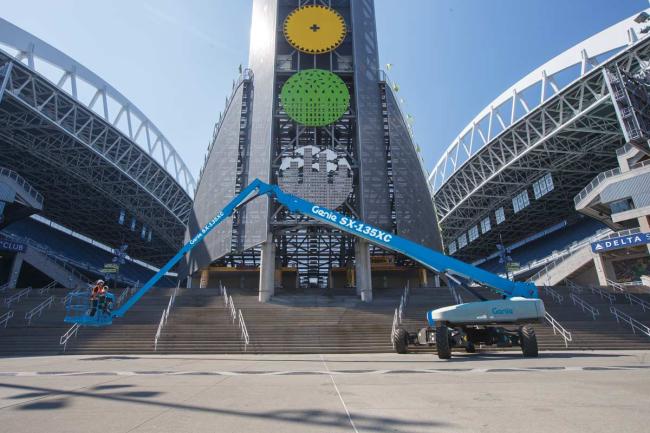

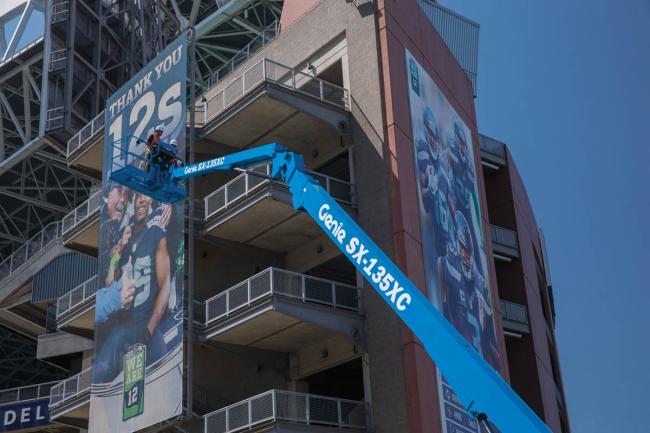

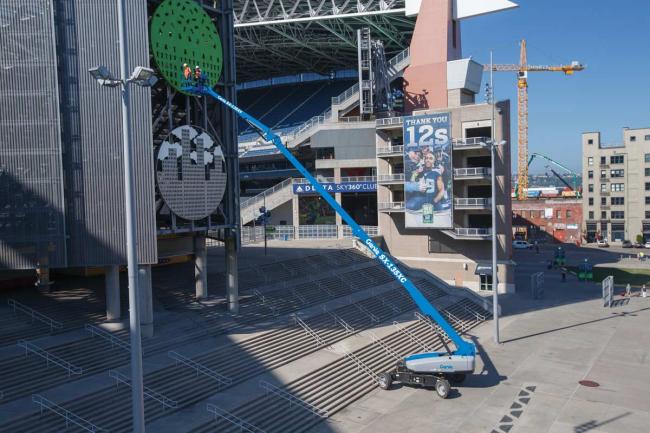

The Genie® SX-135 XC™ telescopic boom delivers industry-leading outreach and capacity through the full working envelope for incredible operational versatility and accessibility. It boasts 660 lb/1,000 lb (300/454 kg)** dual platform capacity with a smooth range of motion envelope to lift heavy loads in the most challenging jobsite applications.

Overview

  • Industry-leading 90 ft (27.43 m) of maximum outreach
  • Increased range of motion with 18 - 30 ft (5.48 – 9.14 m) Telescoping Jib-Extend™ and 125° of jib articulation
  • Load sense technology for accurate load weighing and zero-load field calibration
  • Extended reach out and down capability with 19 ft 1 8n (5.99 m) of reach below grade



   ** Maximum outreach zone / maximum capacity zone.


Specifications

Below Ground Reach:
19 ft 8 in | 6.00 m
Machine Width and Length:
12 ft 11 in / 64 ft 10 in | 3.94 m / 19.76 m
Max Horizontal Reach:
90 ft | 27.43 m
Max Working Height:
141 ft | 43.15 m
Platform Capacity:
660 lb Unrestricted, 1000 lb Restricted | 300 kg Unrestricted, 454 kg Restricted

Options

Engine Options

  • Diesel intake air pre-cleaner
  • Cold weather recirc kit: 5W-40 Synthetic engine oil, oil pan heater, battery heater, control board heater, platform manifold recirculation, and hydraulic tank heater

Lift/Turntable Options

  • Hostile environment kit: cylinder bellows, boom wiper seals,
  • LCD heater, platform manifold recirculation, and hydraulic tank heater
  • Specialty hydraulic oil  (138 gal - cold weather, fire resistant, or biodegradable)

Platforms

  • 6 ft. dual entry or 8 ft. tri entry platform with ½ height mesh inserts and side swing gate
  • 6 ft. dual entry platform with side swing gate

Platform Options

  • AC generator, 110V/60Hz or 220V/50Hz, 3000W, hydraulically driven
  • Air line to platform
  • Light package:  2 platform mounted work lights
  • Lockable platform control box cover
  • Thumb rocker steering
  • Welder package, 7.5kW generator - Select Lincoln or Miller
  • Welder package, 12kW generator - Select Lincoln or Miller
  • Welder ready package: 7.5kW generator
  • Welder ready package: 12kW generator
  • Traveling fall arrest anchor system: requires 6ft platform
  • Traveling fall arrest anchor system: requires 8ft platform
  • Specifications

    Specifications

    Below Ground Reach:
    19 ft 8 in | 6.00 m
    Machine Width and Length:
    12 ft 11 in / 64 ft 10 in | 3.94 m / 19.76 m
    Max Horizontal Reach:
    90 ft | 27.43 m
    Max Working Height:
    141 ft | 43.15 m
    Platform Capacity:
    660 lb Unrestricted, 1000 lb Restricted | 300 kg Unrestricted, 454 kg Restricted
  • Downloads & Documentation
  • Details

    Options

    Engine Options

    • Diesel intake air pre-cleaner
    • Cold weather recirc kit: 5W-40 Synthetic engine oil, oil pan heater, battery heater, control board heater, platform manifold recirculation, and hydraulic tank heater

    Lift/Turntable Options

    • Hostile environment kit: cylinder bellows, boom wiper seals,
    • LCD heater, platform manifold recirculation, and hydraulic tank heater
    • Specialty hydraulic oil  (138 gal - cold weather, fire resistant, or biodegradable)

    Platforms

    • 6 ft. dual entry or 8 ft. tri entry platform with ½ height mesh inserts and side swing gate
    • 6 ft. dual entry platform with side swing gate

    Platform Options

    • AC generator, 110V/60Hz or 220V/50Hz, 3000W, hydraulically driven
    • Air line to platform
    • Light package:  2 platform mounted work lights
    • Lockable platform control box cover
    • Thumb rocker steering
    • Welder package, 7.5kW generator - Select Lincoln or Miller
    • Welder package, 12kW generator - Select Lincoln or Miller
    • Welder ready package: 7.5kW generator
    • Welder ready package: 12kW generator
    • Traveling fall arrest anchor system: requires 6ft platform
    • Traveling fall arrest anchor system: requires 8ft platform
