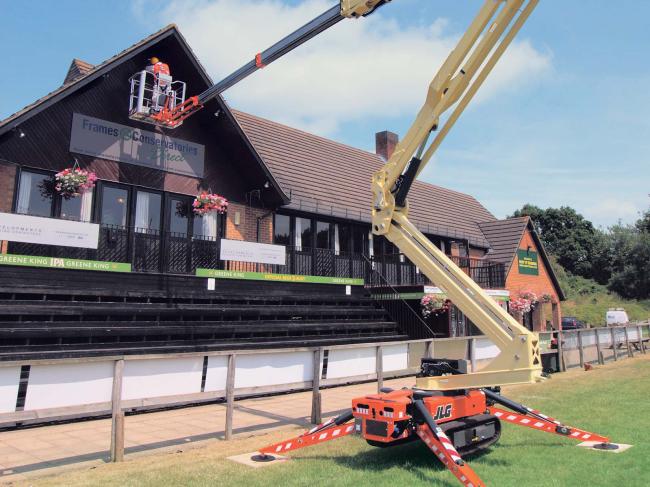

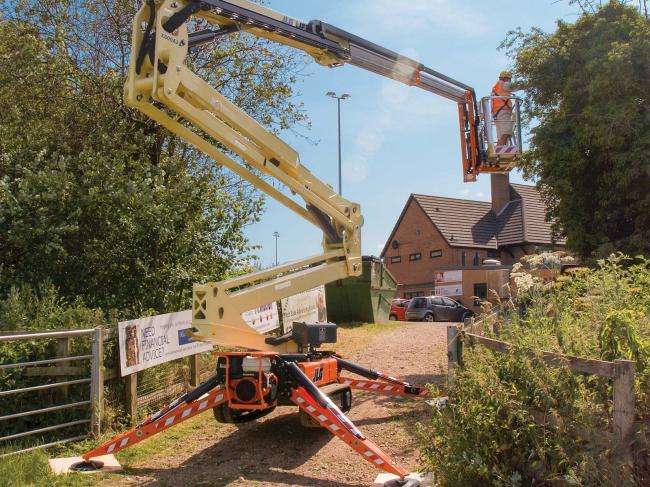

JLG Equipment X600AJ
Boom Lifts
How can we help?
888-503-4685
Key Specs
- Machine Width: 2 ft 7 in. / 0.79 m
- Platform Capacity: 500 lb / 226.80 kg
Key Features
- Drive speed control for smooth operation on a variety of terrains
- 500 lb unrestricted platform capacity
- Regenerative valve on telescopic cylinder resulting 50% increase in speed
- Auto levels on uneven surfaces

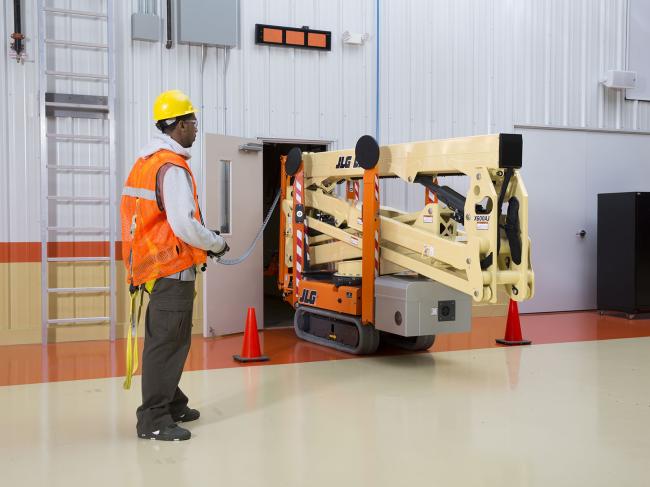

- Travels through a single doorway
Key Specs
- Machine Width: 2 ft 7 in. / 0.79 m
- Platform Capacity: 500 lb / 226.80 kg
Key Features
- Drive speed control for smooth operation on a variety of terrains
- 500 lb unrestricted platform capacity
- Regenerative valve on telescopic cylinder resulting 50% increase in speed
- Auto levels on uneven surfaces
- Travels through a single doorway
Features
-
Regenerative valve on telescopic cylinder resulting 50% increase in speed
-
Auto levels on uneven surfaces
-
500 lb unrestricted platform capacity
-
Travels through a single doorway
-
Drive speed control for smooth operation on a variety of terrains
Specifications
Engine Type - Electric: |
100Ah 72V Lithium-Ion |
Engine Type - Gasoline: |
Honda GX440 15 hp |
Fuel Tank Capacity - Gasoline: |
1.5 gal. / 5.68 L |
Gradeability: |
28 % |
Ground Bearing Pressure - Outriggers: |
44.1 psi / 3.09 Kg/cm2 |
Horizontal Outreach: |
30 ft / 9.14 m |
Jib - Range of articulation: |
89 Degrees |
Machine Height: |
6 ft 7 in. / 1.99 m |
Machine Length: |
16 ft 5 in. / 5 m |
Machine Weight: |
6571 lb / 2980.56 kg |
Machine Width: |
2 ft 7 in. / 0.79 m |
Maximum Ground Bearing Pressure: |
9.3 psi / 0.65 Kg/cm2 |
Outrigger Footprint Length: |
10 ft 7 in. / 3.23 m |
Outriggers or Stabilizers: |
Yes |
Platform Capacity: |
500 lb / 226.80 kg |
Platform Dimension A: |
4 ft 10 in. / 1.47 m |
Platform Dimension B: |
2 ft 6 in. / 0.76 m |
Platform Height: |
59 ft 3 in. / 18.06 m |
Slope Tolerance: |
15 ° |
Swing: |
360 Degrees |
Swing Type: |
Non-Continuous |
Links
-
Features
Features
-
Regenerative valve on telescopic cylinder resulting 50% increase in speed
-
Auto levels on uneven surfaces
-
500 lb unrestricted platform capacity
-
Travels through a single doorway
-
Drive speed control for smooth operation on a variety of terrains
-
-
Specifications
Specifications
Engine Type - Electric:
100Ah 72V Lithium-Ion Engine Type - Gasoline:
Honda GX440 15 hp Fuel Tank Capacity - Gasoline:
1.5 gal. / 5.68 L Gradeability:
28 % Ground Bearing Pressure - Outriggers:
44.1 psi / 3.09 Kg/cm2 Horizontal Outreach:
30 ft / 9.14 m Jib - Range of articulation:
89 Degrees Machine Height:
6 ft 7 in. / 1.99 m Machine Length:
16 ft 5 in. / 5 m Machine Weight:
6571 lb / 2980.56 kg Machine Width:
2 ft 7 in. / 0.79 m Maximum Ground Bearing Pressure:
9.3 psi / 0.65 Kg/cm2 Outrigger Footprint Length:
10 ft 7 in. / 3.23 m Outriggers or Stabilizers:
Yes Platform Capacity:
500 lb / 226.80 kg Platform Dimension A:
4 ft 10 in. / 1.47 m Platform Dimension B:
2 ft 6 in. / 0.76 m Platform Height:
59 ft 3 in. / 18.06 m Slope Tolerance:
15 ° Swing:
360 Degrees Swing Type:
Non-Continuous -
