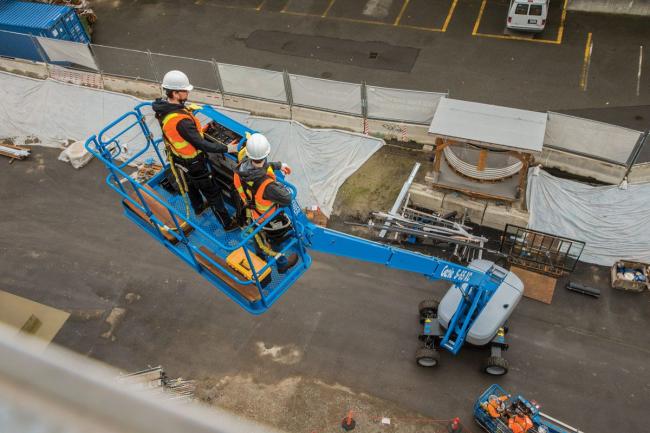

Able to perform a wider range of heavier lift tasks on construction and industrial jobsites with Genie® S®-60 XC™ and S-65 XC telescopic booms — offering a dual lift capacity of 660-lb (300 kg) unrestricted and 1,000-lb (454 kg) restricted. The Genie Xtra Capacity™ (XC) feature lets up to three people work onboard with room for tools and jobsite materials.

Overview

  • Maximum capacity with a robust jib design to handle increased loads
  • Load sense technology for accurate load weighing and zero-load field calibration
  • Chassis tilt sensor technology maximizes access to hard-to-reach work areas
  • Onboard diagnostics maximizes serviceability
  • Option to add the new Genie Lift Power™ generator system

Specifications

Below Ground Reach:
5 ft 7 in | 1.70 m
Machine Width and Length:
8 ft 2 in, 31 ft 11 in | 2.49 m, 9.73 m
Max Horizontal Reach:
S-60 XC, 50 ft 10 in / S-65 XC, 54 ft 2 in | S-60 XC, 15.49 m / S-65 XC, 16.51 m
Max Working Height:
S-60 XC: 66 ft / S-65 XC: 71 ft | S-60 XC: 20.30 m / S-65 XC: 21.80 m
Platform Capacity:
660 lb Unrestricted, 1,000 lb Restricted | 300 kg Unrestricted, 454 kg Restricted

Options

Chassis Options

  • Tow package

Tire Options

  • S-60 XC Trax or S-65 XC Trax: Quadra Track System
  • Rough terrain, foam-filled tires (petroleum based)
  • Rough terrain, non-marking, foam-filled tires (water based)
  • Rough terrain, non-marking, foam-filled tires  (petroleum based)

Engine Options

  • 60 hp Ford MSG425, gas/LPG Dual Fuel (not available on S60/65 Trax)
  • 74 hp Deutz Tier 4f TD2.9L4, turbo diesel (standard with Trax)
  • Diesel intake air pre-cleaner
  • LPS Fire protection rating: Ford engine only and requires LP only operation
  • Cold weather kit:  5W-40 synthetic engine oil, oil pan heater, battery heater and hydraulic tank heater
  • Ford engine gauge package: oil pressure, temperature and voltage

Lift/Turntable Options

  • Specialty hydraulic oil (60 gal - cold weather, fire resistant, or biodegradable)
  • LPG tank, 33.5 lb. capacity: Ford engine only
  • Second battery
  • Hostile environment kit: cylinder bellows, boom wiper seals, platform and ground control box covers
  • Deluxe hostile environment kit: hostile environment kit, ring gear guard, cable track hose cover, air pre-cleaner

Platforms

  • 4 ft. front-entry steel platform
  • 6 ft. dual entry or 8 ft. tri entry platform with ½ height mesh inserts and side swing gate
  • 6 ft. dual entry platform with side swing gate

Platform Options

  • Lift Power™ 3kW AC generator, 110V/60Hz or 220V/50Hz
  • Air line to platform: ½ in. inner diameter
  • Aircraft protection kit:  platform foam padding and padded disable system
  • Aircraft protection kit: with swing gate
  • Light package: 2 chassis mounted drive lights and 2 platform mounted work lights
  • Lockable platform and ground control box covers
  • Panel cradle package
  • Platform auxiliary top rail
  • Thumb rocker steering
  • Lift Power™ 12kW Welder - Select Lincoln or Miller
  • Lift Power™ 12kW Welder Ready package
  • Traveling fall arrest anchor system: requires 6ft platform
  • Traveling fall arrest anchor system: requires 8ft platform
