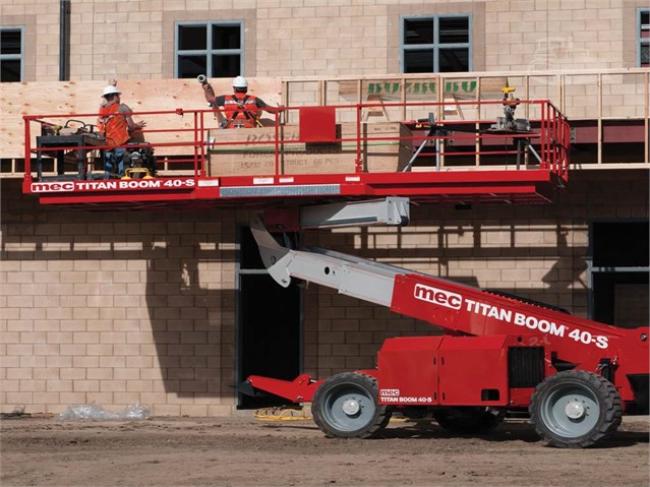

TITAN BOOM 40S
TITAN BOOM™ 40-S - BOOM LIFT

FEATURES:
● (12) lanyard attachments
● 1,000 lbs. (450 kg) distributed load for up to 4 workers and tools
● 1-touch chassis leveling
● 12V DC auxiliary power unit
● 18 in. (0.46 m) ground clearance
● 180° platform rotation
● 2-speed drive motors
● 3,000 lbs. (1,350 kg) Material Load Zone: 54 in. (137 cm) square in center of platform
● 4,000 lbs. (1,800 kg) Combined Platform Capacity:
● 4-wheel disc brakes
● AC power to the platform
● Dual front stabilizers
● Easy access sliding side gates for material loading
● Emergency shut-off at platform and lower controls
● Engine shutdown protection
● Foam-filled R4 lug tread tires
● Fully proportional drive and lift controls
● Fully proportional multi-function controls
● High-Torque Power Package with 4-wheel drive
● Hour meter
● Kubota Turbo diesel engine
● Large swing module doors for access to all components
● Logically grouped components and numbered wiring for easy reference
● Machine tie-downs and lifting lugs
● Multi-axis tilt sensor
● Non-skid metal deck construction
● On-board diagnostics center
● Oscillating front and rear axles for frame leveling ability
● Pinless guardrail system for quick and simple guard rail lowering
● Platform swing gate
● Powder coat finish
● Tilt alarm and horn
● Triple joystick interface

OPTIONS:
● 12 kW 3-phase 275A welder-ready generator
● AC generator (120V/60Hz - 3,000W)
● AC generator (240V/50Hz - 2,500W)
● Air line to platform, 1/2 in. (1.27 cm) inner diameter
● Automotive horn
● CE compliant options
● CSA compliant options
● Diesel scrubber muler with spark arrestor
● Flashing beacon (continuous)
● Glazier kit
● Hostile environment kit
● Non-marking tires
● Pipe carrier kit
● Platform control box cover
● Platform work lights
● Water line to platform
● Weld leads to platform

*Metric equivalent of working height adds 2m to platform height. U.S. adds 6 ft. to platform height.

Weight may vary with certain options or configurations.

Similar models may be shown in addition to the featured model. Equipment may be shown with options. Specifications are subject to change without prior notice.

Specifications

Approach Angle:
38%/21º
Boom Extend Speed:
30 sec
Boom Lift Speed:
50 sec
Boom Lower Speed:
50 sec
Boom Retract Speed:
30 sec
Breakover Angle:
40%/22º
Capacity Total:
4,000 lbs | 1800 kg
Drive Speed (Elevated):
0.5 MPH | 0.8 km/h
Drive Speed (Stowed):
4 MPH | 6.4 km/h
Engine:
Kubota Turbo Diesel Engine
Frame Leveling (Each Side):
10º
Fuel Tank Capacity:
32 gallons | 120 liters
Gradeability:
40%/22º
Ground Clearance:
18” | 46 cm
Height with Rails Folded:
84" | 2.14 m
Hydraulic Oil Capacity:
40 gallons | 150 liters
Inside Turning Radius (4WS):
8' | 2.4 m
Length (Length with Ladder Removed):
22' 6" (22' 0") | 6.9 m (6.7 m)
Loading Height:
74" | 1.9 m
Material Load (within Load Zone):
3,000 lbs | 1350 kg
Maximum Drive Height:
30' | 9.1 m
Maximum Forward Telescope (with Stabilizers):
26' 6" | 8 m
Maximum Horizontal Translation:
55' @22' Elevation | 16.7 m @6.7 m Elevation
Maximum Rearward Platform:
11' 6" | 3.5 m
Outside Turning Radius (4WS):
19' | 5.8 m
Personnel and Equipment:
1,000 lbs | 450 kg
Platform Height:
40’ | 12.2 m
Platform Length:
22' | 6.7 m
Platform Rotation:
180º (+90º, -90º)
Platform Slider Boom Travel:
5' 10" | 1.8 m
Platform Translation Speed:
15 sec
Platform Width:
90" | 2.28 m
Steering Modes:
2WS, 4WS, Crab Steer
Weight:
24,250 lbs | 11,000 kg
Wheelbase:
152" | 3.85 m
Width (Shipping Width):
96" (90") | 2.44 m (2.28 m)
Working Height:
46’* | 14.2 m*
