Z-30/20 N RJ
Z-30/20 N RJ
Z-30/20 N RJ
Z-30/20 N RJ

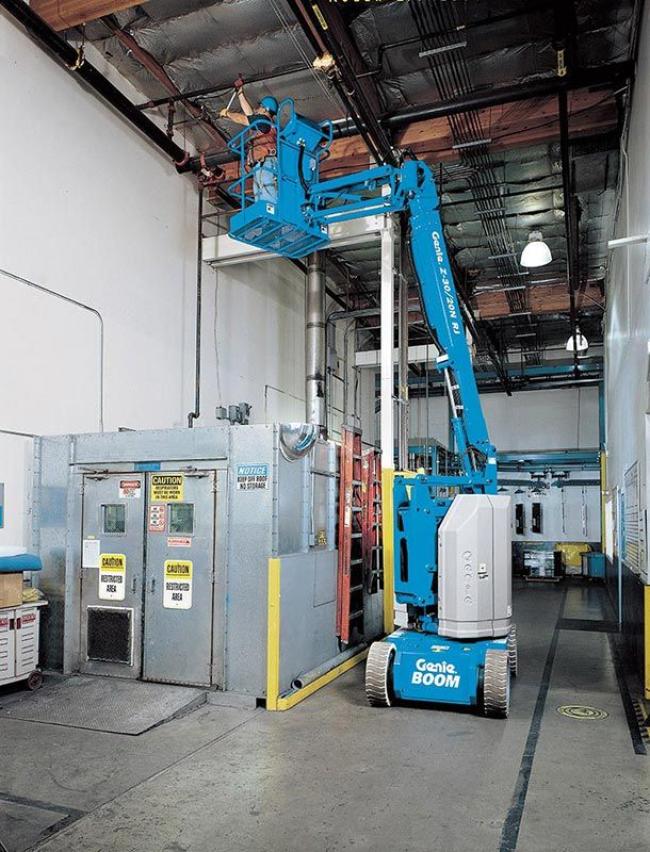

The Genie® Z®-30/20 N RJ articulating boom lift offers quiet, emission-free operation in the most sensitive work environments, and includes a rotating jib for 180°of horizontal rotation. Similar to the Z®-30/20 N, when the machine must be driven significant distances, the Genie bi-energy system combines the benefits of a 48V DC machine with the versatility of a diesel-powered generator.

Overview

  • Works in tight spaces with zero tailswing and front arm swing in stowed and raised positions
  • Compact chassis for narrow aisle access
  • The RJ model features a rotating jib that adds an industry-leading 180° (2 x 90°) of horizontal rotation.
  • 35% gradeability drive performance and 3.3 mph travel speed




Specifications

Max Horizontal Reach:
20 ft 6 in | 6.25 m
Max Up and Over Clearance (riser extended):
12 ft 8 in | 3.86 m
Max Working Height:
35 ft 2 in | 10.89 m
Platform Capacity:
500 lb | 227 kg

Options

Certification Options

  • EE rating

Lift/Turntable Options

  • AGM maintenance-free batteries
  • Battery charge indicator (BCI)
  • Specialty hydraulic oil  (6 gal - cold weather, fire resistant, or biodegradable)
  • Low voltage interrupt with battery charge indicator (BCI)
  • Power inverter, 800W, 120V AC, 60 Hz
  • Hostile environment kit: cylinder bellows, boom wiper seals and platform control box cover

Platform Options

  • Air line to platform:  ? in. inner diameter
  • Aircraft protection kit:  platform foam padding and padded disable system
  • Light package: 2 chassis mounted drive lights, 2 platform mounted work lights
  • Lockable platform control box cover
  • Platform ½ height mesh inserts with swing gate
  • Platform auxiliary top rail
  • Platform swing gate
  • Specifications

    Specifications

    Max Horizontal Reach:
    20 ft 6 in | 6.25 m
    Max Up and Over Clearance (riser extended):
    12 ft 8 in | 3.86 m
    Max Working Height:
    35 ft 2 in | 10.89 m
    Platform Capacity:
    500 lb | 227 kg
  • Downloads & Documentation
  • Details

    Options

    Certification Options

    • EE rating

    Lift/Turntable Options

    • AGM maintenance-free batteries
    • Battery charge indicator (BCI)
    • Specialty hydraulic oil  (6 gal - cold weather, fire resistant, or biodegradable)
    • Low voltage interrupt with battery charge indicator (BCI)
    • Power inverter, 800W, 120V AC, 60 Hz
    • Hostile environment kit: cylinder bellows, boom wiper seals and platform control box cover

    Platform Options

    • Air line to platform:  ? in. inner diameter
    • Aircraft protection kit:  platform foam padding and padded disable system
    • Light package: 2 chassis mounted drive lights, 2 platform mounted work lights
    • Lockable platform control box cover
    • Platform ½ height mesh inserts with swing gate
    • Platform auxiliary top rail
    • Platform swing gate
