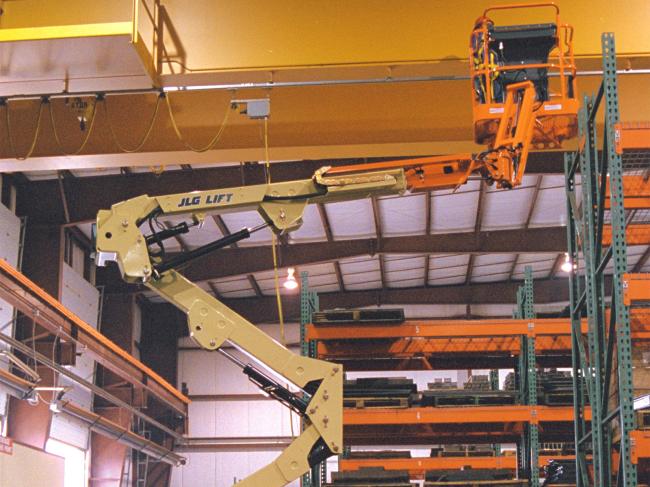

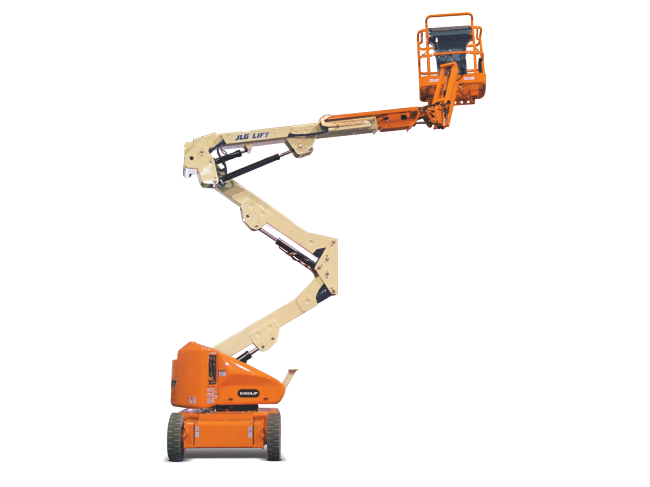

JLG Equipment E400AN
Boom Lifts
How can we help?
888-503-4685
Features
-
Environmentally friendly – zero emissions
-
Accessibility – up and over access, optional jib
-
Maneuverability – move over uneven surfaces with Automatic Traction Control
-
Productivity – work longer with longer duty cycles
Specifications
Batteries: |
8 x 6V, 370 amp-hr |
Capacity - Hydraulic Reservoir: |
4 gal. / 15.14 L |
Drive Speed - Platform Lowered: |
3 mph / 4.83 km/h |
Electrical System: |
48 Volts DC |
Gradeability - 2WD: |
30 % |
Ground Clearance: |
5 in. / 0.13 m |
Horizontal Jib Rotation: |
0 Degrees |
Horizontal Outreach: |
21 ft 2 in. / 6.45 m |
Machine Height: |
6 ft 6 in. / 1.97 m |
Machine Length: |
18 ft 1 in. / 5.51 m |
Machine Weight: |
13100 lb / 5942.06 kg |
Machine Width: |
4 ft 11 in. / 1.5 m |
Platform Capacity - Unrestricted: |
500 lb / 226.80 kg |
Platform Dimension A: |
2 ft 6 in. / 0.76 m |
Platform Dimension B: |
4 ft / 1.22 m |
Platform Height: |
40 ft / 12.19 m |
Swing: |
360 Degrees |
Swing Type: |
Non-Continuous |
Tailswing: |
4 in. / 0.1 m |
Tire Size: |
22 x 6 x 17.75 Non-marking (F), 25 x 7 x 12 Non-marking (R) |
Turning Radius - Outside: |
10 ft 4 in. / 3.15 m |
Up and Over Height: |
21 ft 6 in. / 6.55 m |
Wheelbase: |
6 ft 7 in. / 2.01 m |
