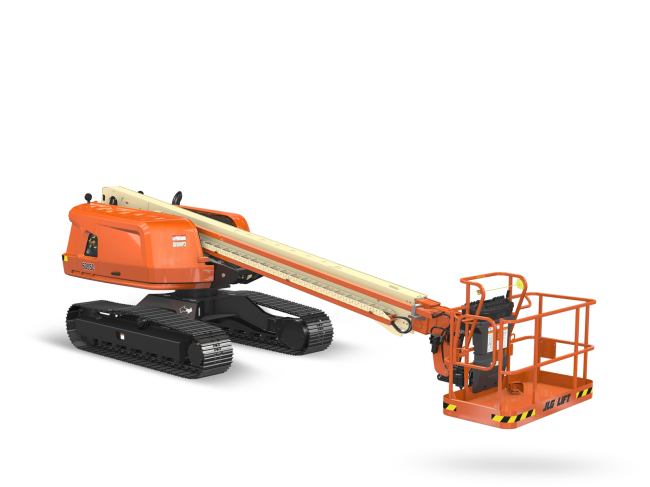

JLG Equipment 600SC
Boom Lifts
How can we help?
888-503-4685
Key Specs
- Platform Height: 59 ft 5 in. / 18.11 m
- Platform Capacity - Restricted: 1000 lb / 453.59 kg
- Platform Capacity - Unrestricted: 600 lb / 272.16 kg
- Horizontal Outreach: 50 ft 3 in. / 15.32 m
Key Features
- For your toughest jobs and terrains, the 600 Crawler Series provides the mobility you need
- Single drive / steer joystick for one-handed operation
- Zero turning radius to get around the jobsite easier
Key Specs
- Platform Height: 59 ft 5 in. / 18.11 m
- Platform Capacity - Restricted: 1000 lb / 453.59 kg
- Platform Capacity - Unrestricted: 600 lb / 272.16 kg
- Horizontal Outreach: 50 ft 3 in. / 15.32 m
Key Features
- For your toughest jobs and terrains, the 600 Crawler Series provides the mobility you need
- Single drive / steer joystick for one-handed operation
- Zero turning radius to get around the jobsite easier
Features
-
Zero turning radius to get around the jobsite easier
-
Single drive / steer joystick for one-handed operation
-
For your toughest jobs and terrains, the 600 Crawler Series provides the mobility you need
Specifications
Auxiliary Power: |
12 Volts DC |
Capacity - Fuel Tank: |
31 gal. / 117.35 L |
Capacity - Hydraulic Reservoir: |
34 gal. / 128.70 L |
Drive Speed - 4WD: |
1.6 mph / 2.57 km/h |
Engine Type - Diesel: |
Deutz TD2.9L4 Tier 4 Final |
Gradeability - 4WD: |
55 % |
Ground Clearance: |
1 ft 3 in. / 0.38 m |
Horizontal Outreach: |
50 ft 3 in. / 15.32 m |
Machine Height: |
8 ft 2 in. / 2.5 m |
Machine Length: |
28 ft 7 in. / 8.71 m |
Machine Weight: |
25942 lb / 11767.09 kg |
Machine Width: |
8 ft 2 in. / 2.49 m |
Maximum Ground Bearing Pressure: |
5.5 psi / 0.38 Kg/cm2 |
Platform Capacity - Restricted: |
1000 lb / 453.59 kg |
Platform Capacity - Unrestricted: |
600 lb / 272.16 kg |
Platform Dimension A: |
3 ft / 0.91 m |
Platform Dimension B: |
8 ft / 2.44 m |
Platform Height: |
59 ft 5 in. / 18.11 m |
Swing: |
360 Degrees |
Swing Type: |
Continuous |
Tailswing: |
4 ft / 1.22 m |
Track Width: |
20in. |
Links
-
Features
Features
-
Zero turning radius to get around the jobsite easier
-
Single drive / steer joystick for one-handed operation
-
For your toughest jobs and terrains, the 600 Crawler Series provides the mobility you need
-
-
Specifications
Specifications
Auxiliary Power:
12 Volts DC Capacity - Fuel Tank:
31 gal. / 117.35 L Capacity - Hydraulic Reservoir:
34 gal. / 128.70 L Drive Speed - 4WD:
1.6 mph / 2.57 km/h Engine Type - Diesel:
Deutz TD2.9L4 Tier 4 Final Gradeability - 4WD:
55 % Ground Clearance:
1 ft 3 in. / 0.38 m Horizontal Outreach:
50 ft 3 in. / 15.32 m Machine Height:
8 ft 2 in. / 2.5 m Machine Length:
28 ft 7 in. / 8.71 m Machine Weight:
25942 lb / 11767.09 kg Machine Width:
8 ft 2 in. / 2.49 m Maximum Ground Bearing Pressure:
5.5 psi / 0.38 Kg/cm2 Platform Capacity - Restricted:
1000 lb / 453.59 kg Platform Capacity - Unrestricted:
600 lb / 272.16 kg Platform Dimension A:
3 ft / 0.91 m Platform Dimension B:
8 ft / 2.44 m Platform Height:
59 ft 5 in. / 18.11 m Swing:
360 Degrees Swing Type:
Continuous Tailswing:
4 ft / 1.22 m Track Width:
20in. -
