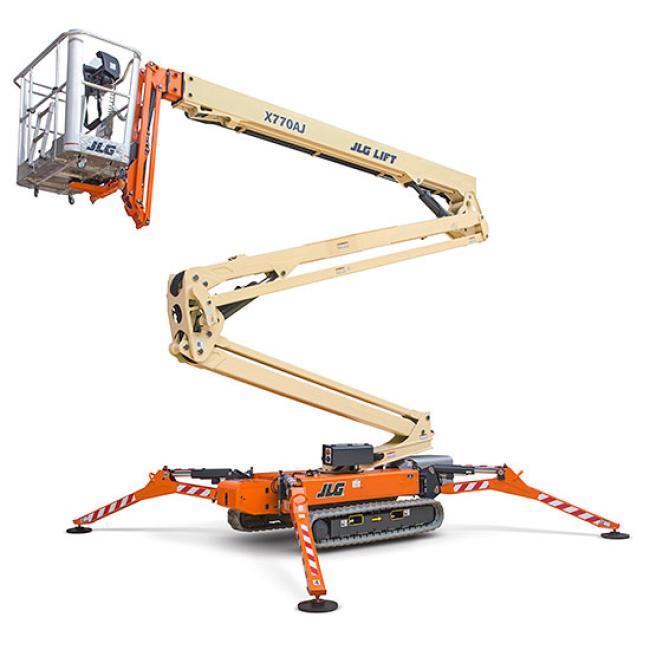

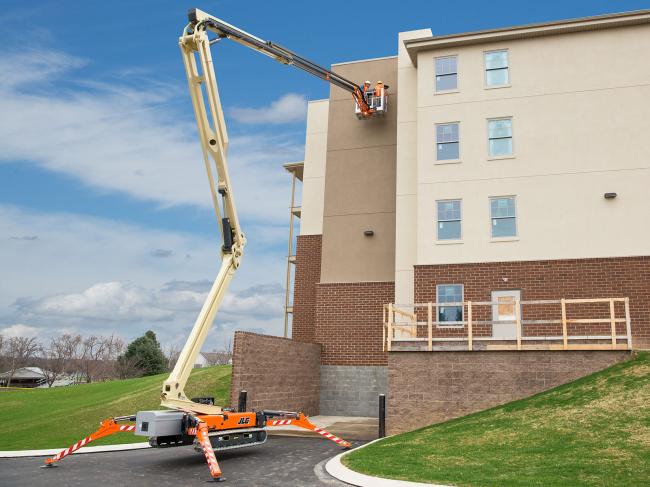

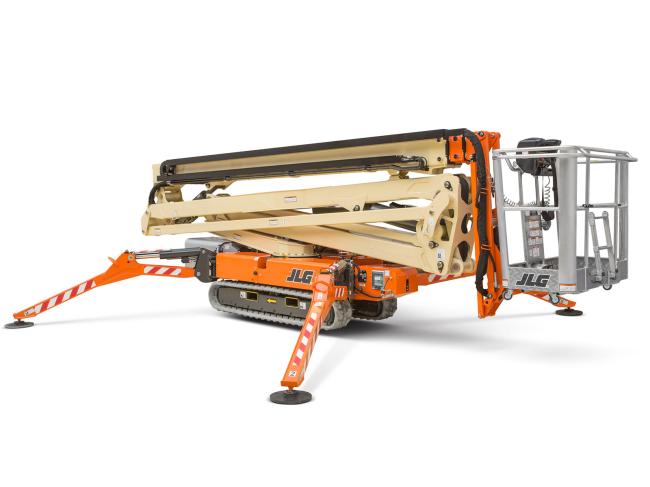

X770AJ
X770AJ
X770AJ
X770AJ
X770AJ
X770AJ
X770AJ
X770AJ
X770AJ
X770AJ

Key Specs

  • Machine Width: 3 ft 3 in. / 0.99 m
  • Platform Capacity: 500 lb / 226.80 kg

Key Features

  • Drive speed control for smooth operation on a variety of terrains
  • 500 lb unrestricted platform capacity
  • Regenerative valve on telescopic cylinder resulting 50% increase in speed
  • Fits through a standard doorway
  • Auto levels on uneven surfaces

Features

  • Regenerative valve on telescopic cylinder resulting 50% increase in speed

  • 500 lb unrestricted platform capacity

  • Drive speed control for smooth operation on a variety of terrains

  • Fits through a standard doorway

  • Auto levels on uneven surfaces

Specifications

Engine Type - Diesel:
Diesel Kubota D902 21.6 hp
Engine Type - Electric:
100Ah 83V Lithium-Ion
Fuel Tank Capacity - Diesel:
6.6 gal. / 24.98 L
Gradeability:
28 %
Ground Bearing Pressure - Outriggers:
65.3 psi / 4.57 Kg/cm2
Horizontal Outreach:
43 ft / 13.11 m
Jib - Range of articulation:
89 Degrees
Machine Height:
6 ft 7 in. / 1.99 m
Machine Length:
20 ft 9 in. / 6.32 m
Machine Weight:
9665 lb / 4383.97 kg
Machine Width:
3 ft 3 in. / 0.99 m
Maximum Ground Bearing Pressure:
7.8 psi / 0.55 Kg/cm2
Outrigger Footprint Length:
14 ft / 4.27 m
Outrigger Footprint Width:
13 ft 6 in. / 4.11 m
Outriggers or Stabilizers:
Yes
Platform Capacity:
500 lb / 226.80 kg
Platform Dimension A:
4 ft 10 in. / 1.47 m
Platform Dimension B:
2 ft 6 in. / 0.76 m
Platform Height:
77 ft 5 in. / 23.6 m
Slope Tolerance:
16 °
Swing:
360 Degrees
Swing Type:
Non-Continuous
Track Length:
6 ft 10 in. / 2.08 m
Working Height:
84 ft / 25.6 m
  • Features

    Features

    • Regenerative valve on telescopic cylinder resulting 50% increase in speed

    • 500 lb unrestricted platform capacity

    • Drive speed control for smooth operation on a variety of terrains

    • Fits through a standard doorway

    • Auto levels on uneven surfaces

  • Specifications

    Specifications

    Engine Type - Diesel:
    Diesel Kubota D902 21.6 hp
    Engine Type - Electric:
    100Ah 83V Lithium-Ion
    Fuel Tank Capacity - Diesel:
    6.6 gal. / 24.98 L
    Gradeability:
    28 %
    Ground Bearing Pressure - Outriggers:
    65.3 psi / 4.57 Kg/cm2
    Horizontal Outreach:
    43 ft / 13.11 m
    Jib - Range of articulation:
    89 Degrees
    Machine Height:
    6 ft 7 in. / 1.99 m
    Machine Length:
    20 ft 9 in. / 6.32 m
    Machine Weight:
    9665 lb / 4383.97 kg
    Machine Width:
    3 ft 3 in. / 0.99 m
    Maximum Ground Bearing Pressure:
    7.8 psi / 0.55 Kg/cm2
    Outrigger Footprint Length:
    14 ft / 4.27 m
    Outrigger Footprint Width:
    13 ft 6 in. / 4.11 m
    Outriggers or Stabilizers:
    Yes
    Platform Capacity:
    500 lb / 226.80 kg
    Platform Dimension A:
    4 ft 10 in. / 1.47 m
    Platform Dimension B:
    2 ft 6 in. / 0.76 m
    Platform Height:
    77 ft 5 in. / 23.6 m
    Slope Tolerance:
    16 °
    Swing:
    360 Degrees
    Swing Type:
    Non-Continuous
    Track Length:
    6 ft 10 in. / 2.08 m
    Working Height:
    84 ft / 25.6 m
