Key Specs

  • Maximum Lift Capacity: 5511.6 lb / 2500 kg
  • Maximum Lift Height: 18.4 ft / 5.60 m
  • Maximum Reach: 10.8 ft / 3.30 m

Key Features

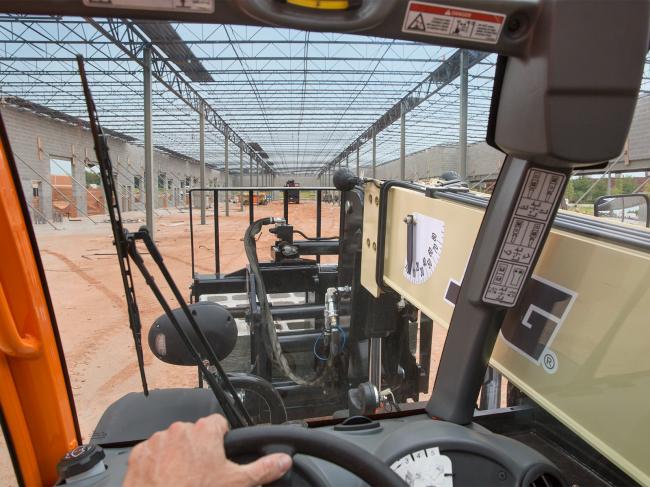

  • Comfortable cab to reduce operator fatigue
  • Tight turning radius to maneuver through crowded jobsites
  • Fuel-efficient Tier 4 final Deutz engine
  • Variety of attachments for versatility in handling jobsite challenges
  • Universal skid steer adapter compatible with existing skid steer attachments

Features

  • Comfortable cab to reduce operator fatigue

  • Variety of attachments for versatility in handling jobsite challenges

  • Tight turning radius to maneuver through crowded jobsites

  • Fuel-efficient Tier 4 final Deutz engine

  • Universal skid steer adapter compatible with existing skid steer attachments

Specifications

Axle-Front:
High Bias, Limited Slip
Axle-Rear:
Oscillating
Breakout Force:
8093.1 lbf / 36 kN
Cab Width:
2 ft 10 in. / 0.87 m
Capacity - Coolant:
3.5 gal. / 13.20 L
Capacity - Engine Oil:
2.4 gal. / 9.10 L
Capacity - Fuel Tank:
24 gal. / 91 L
Capacity - Hydraulic Reservoir:
16.1 gal. / 61 L
Drawbar Pull:
8902.4 lbf / 39.60 kN
Engine Horsepower:
74.3 hp / 55.40 kW
Engine Manufacturer:
Deutz
Engine Model:
TD 2.9 L4
Frame Leveling:
0 Degrees
Function Pump Type:
Gear
Ground Clearance:
1 ft / 0.31 m
Hydraulic System Flow:
19.1 gal/min. / 72.30 L/Min
Hydraulic System Pressure:
3495.4 psi / 241 bar
Lift Capacity at Full Height:
4409.2 lb / 2000 kg
Lift Capacity at Max Reach:
1763.7 lb / 800 kg
Load Center:
1 ft 8 in. / 0.5 m
Machine Height:
6 ft 4 in. / 1.92 m
Machine Length:
12 ft / 3.66 m
Machine Length (Forks):
12 ft 6 in. / 3.82 m
Machine Width:
6 ft / 1.83 m
Maximum Engine RPM:
2300 rpm
Maximum Lift Capacity:
5511.6 lb / 2500 kg
Maximum Lift Height:
18.4 ft / 5.60 m
Maximum Reach:
10.8 ft / 3.30 m
Operating Vehicle Weight:
11001.1 lb / 4990 kg
Outriggers or Stabilizers:
No
Outside Turning Radius:
10 ft 6 in. / 3.2 m
Service Brake Type:
Wet Multi-Disc
Speed - Maximum Crowd:
2.5 sec.
Speed - Maximum Dump:
2 sec.
Speed - Maximum Lift:
6.8 sec.
Speed - Maximum Lower:
4.6 sec.
Speed - Maximum Telescope In:
3.8 sec.
Speed - Maximum Telescope Out:
6.7 sec.
Speed - Maximum Travel:
14.9 mph / 24 km/h
Tire Size:
12 X 16.5 12PR
Towing Capacity:
6613.9 lb / 3000 kg
Track Width:
4 ft 11 in. / 1.51 m
Transmission Type:
Hydrostatic
Wheelbase:
7 ft 6 in. / 2.29 m
  • Features

    Features

    • Comfortable cab to reduce operator fatigue

    • Variety of attachments for versatility in handling jobsite challenges

    • Tight turning radius to maneuver through crowded jobsites

    • Fuel-efficient Tier 4 final Deutz engine

    • Universal skid steer adapter compatible with existing skid steer attachments

  • Specifications

    Specifications

    Axle-Front:
    High Bias, Limited Slip
    Axle-Rear:
    Oscillating
    Breakout Force:
    8093.1 lbf / 36 kN
    Cab Width:
    2 ft 10 in. / 0.87 m
    Capacity - Coolant:
    3.5 gal. / 13.20 L
    Capacity - Engine Oil:
    2.4 gal. / 9.10 L
    Capacity - Fuel Tank:
    24 gal. / 91 L
    Capacity - Hydraulic Reservoir:
    16.1 gal. / 61 L
    Drawbar Pull:
    8902.4 lbf / 39.60 kN
    Engine Horsepower:
    74.3 hp / 55.40 kW
    Engine Manufacturer:
    Deutz
    Engine Model:
    TD 2.9 L4
    Frame Leveling:
    0 Degrees
    Function Pump Type:
    Gear
    Ground Clearance:
    1 ft / 0.31 m
    Hydraulic System Flow:
    19.1 gal/min. / 72.30 L/Min
    Hydraulic System Pressure:
    3495.4 psi / 241 bar
    Lift Capacity at Full Height:
    4409.2 lb / 2000 kg
    Lift Capacity at Max Reach:
    1763.7 lb / 800 kg
    Load Center:
    1 ft 8 in. / 0.5 m
    Machine Height:
    6 ft 4 in. / 1.92 m
    Machine Length:
    12 ft / 3.66 m
    Machine Length (Forks):
    12 ft 6 in. / 3.82 m
    Machine Width:
    6 ft / 1.83 m
    Maximum Engine RPM:
    2300 rpm
    Maximum Lift Capacity:
    5511.6 lb / 2500 kg
    Maximum Lift Height:
    18.4 ft / 5.60 m
    Maximum Reach:
    10.8 ft / 3.30 m
    Operating Vehicle Weight:
    11001.1 lb / 4990 kg
    Outriggers or Stabilizers:
    No
    Outside Turning Radius:
    10 ft 6 in. / 3.2 m
    Service Brake Type:
    Wet Multi-Disc
    Speed - Maximum Crowd:
    2.5 sec.
    Speed - Maximum Dump:
    2 sec.
    Speed - Maximum Lift:
    6.8 sec.
    Speed - Maximum Lower:
    4.6 sec.
    Speed - Maximum Telescope In:
    3.8 sec.
    Speed - Maximum Telescope Out:
    6.7 sec.
    Speed - Maximum Travel:
    14.9 mph / 24 km/h
    Tire Size:
    12 X 16.5 12PR
    Towing Capacity:
    6613.9 lb / 3000 kg
    Track Width:
    4 ft 11 in. / 1.51 m
    Transmission Type:
    Hydrostatic
    Wheelbase:
    7 ft 6 in. / 2.29 m
