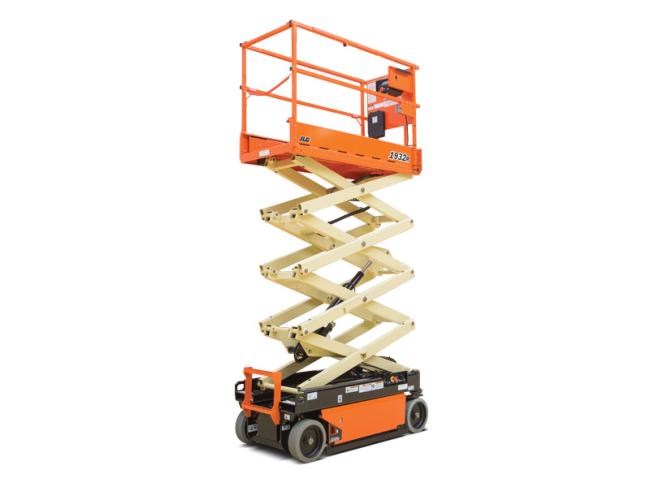

JLG Equipment 1932R
Scissor Lifts
How can we help?
888-503-4685
Features
-
Active pothole protection provides increased ground clearance
-
All-steel platform and component doors and thicker rubber tires for added durability
-
Fewer parts and an improved battery charger for greater serviceability
Specifications
Batteries: |
4 x 6V 220 amp-hour |
Brakes: |
Multi-Disc Friction |
Capacity - Hydraulic Reservoir: |
4.5 gal. / 17.03 L |
Charger: |
27 amp Universal Algorithm |
Drive Speed - Platform Elevated: |
0.5 mph / 0.80 km/h |
Drive Speed - Platform Lowered: |
2 mph / 3.22 km/h |
Drive System: |
Hydraulic Front Wheel |
Gradeability: |
25 % |
Ground Clearance: |
3 in. / 0.07 m |
Hydraulic Pump: |
Fixed Displacement Gear |
Lift Time: |
25 sec. |
Lower Time: |
26 sec. |
Machine Height: |
6 ft 7 in. / 1.99 m |
Machine Length: |
5 ft 9 in. / 1.74 m |
Machine Weight: |
2630 lb / 1192.95 kg |
Machine Width: |
2 ft 8 in. / 0.81 m |
Maximum Drive Height: |
19 ft / 5.79 m |
Maximum Ground Bearing Pressure: |
101 psi / 7.07 Kg/cm2 |
Platform Capacity - Extension: |
250 lb / 113.40 kg |
Platform Capacity - Unrestricted: |
550 lb / 249.48 kg |
Platform Extension Length: |
3 ft / 0.91 m |
Platform Height - Lowered: |
3 ft 3 in. / 0.98 m |
Platform Railing Height: |
3 ft 4 in. / 1.01 m |
Tire Size: |
12 x 4 in |
Turning Radius - Inside: |
0 in. / 0 m |
Turning Radius - Outside: |
5 ft 6 in. / 1.68 m |
Wheelbase: |
4 ft 5 in. / 1.35 m |
Working Height: |
25 ft / 7.62 m |
