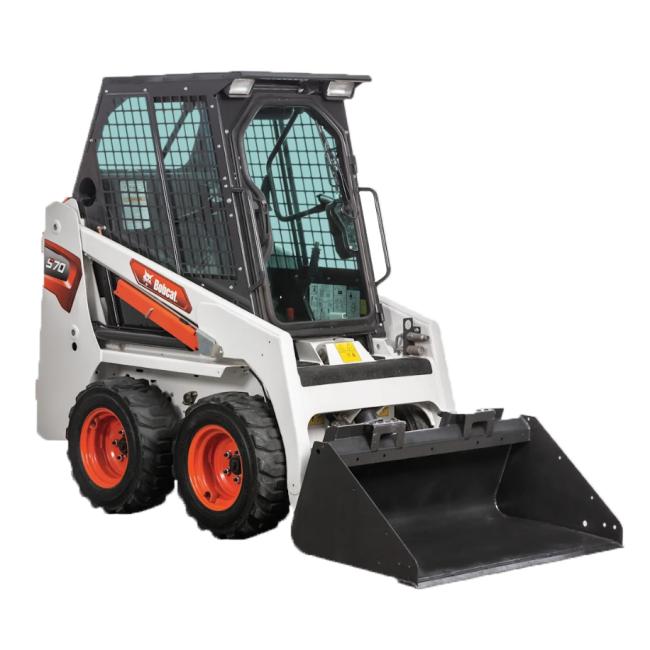

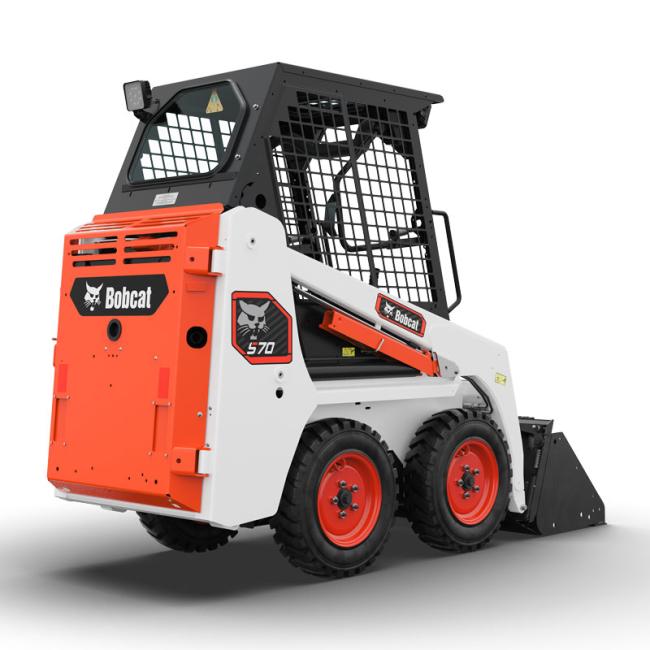

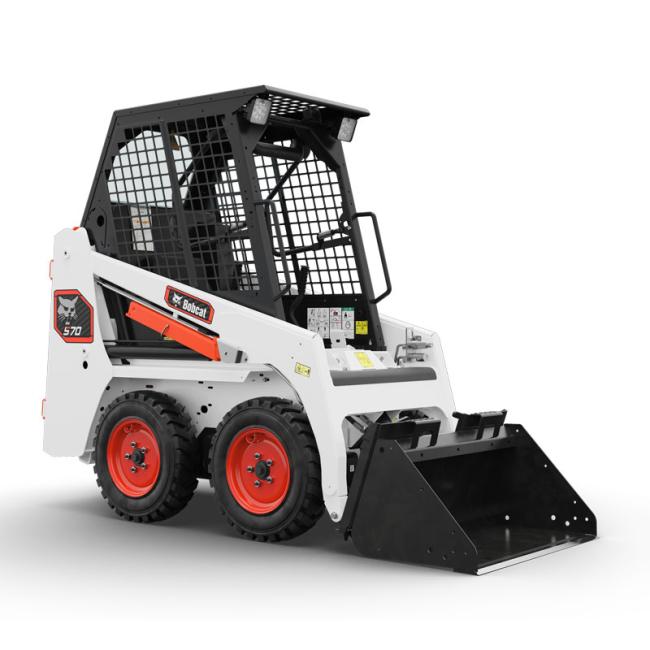

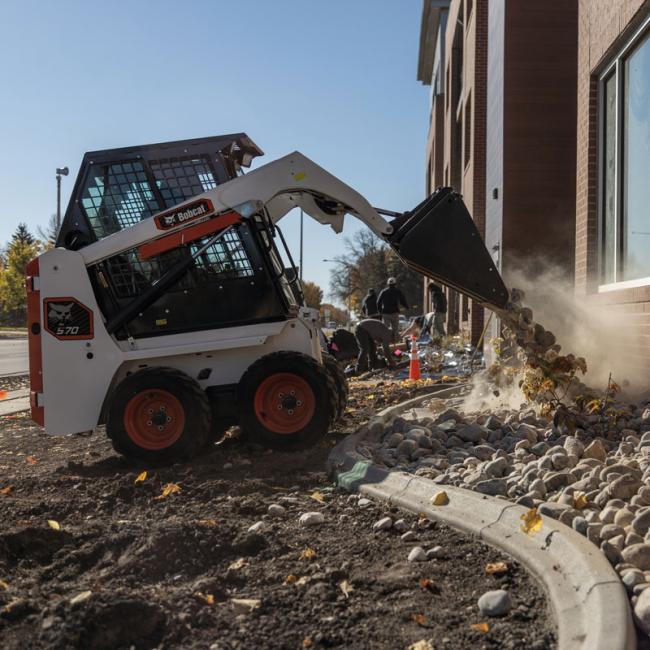

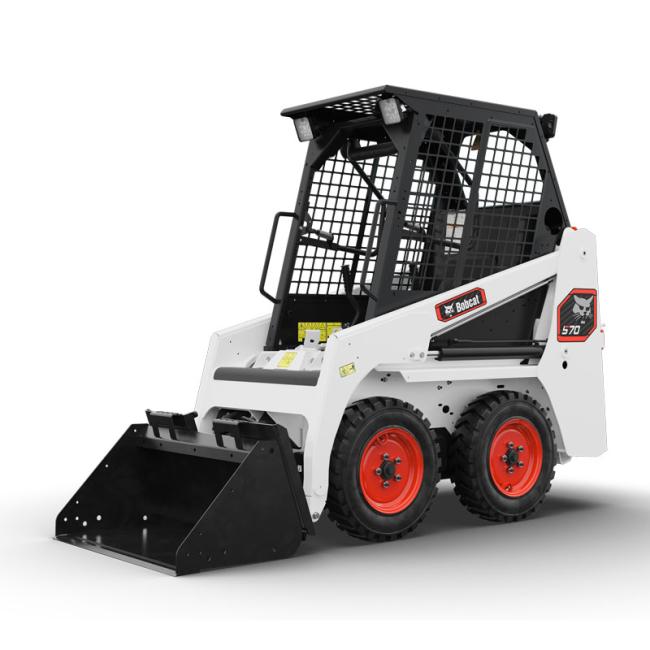

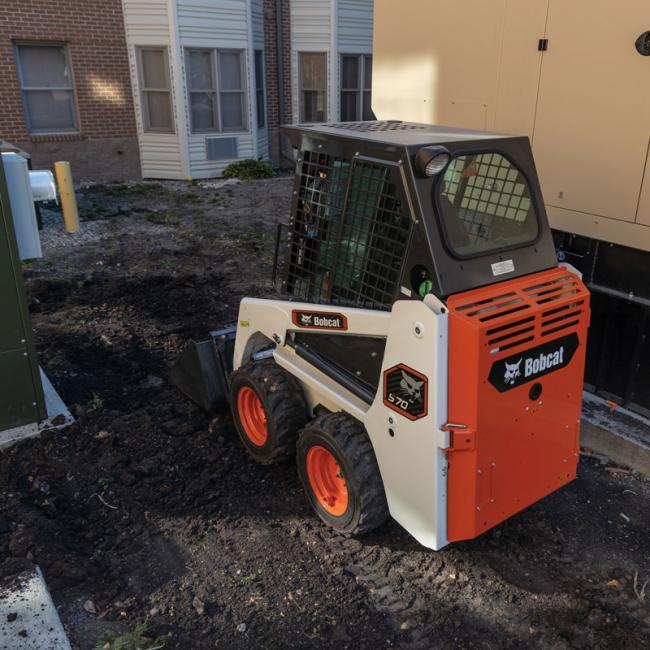

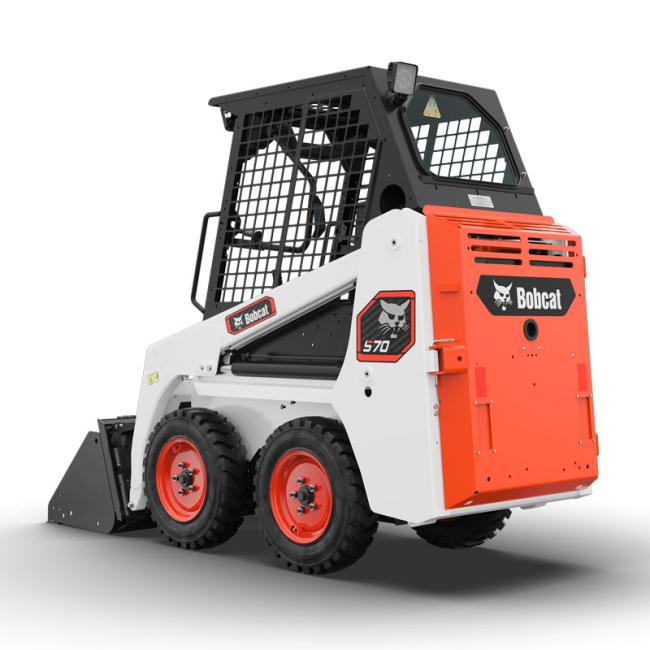

Bobcat S70 Skid-Steer Loader
Bobcat S70 Skid-Steer Loader
Bobcat S70 Skid-Steer Loader
Bobcat S70 Skid-Steer Loader
Bobcat S70 Skid-Steer Loader
Bobcat S70 Skid-Steer Loader
Bobcat S70 Skid-Steer Loader
Bobcat S70 Skid-Steer Loader
Bobcat S70 Skid-Steer Loader
Bobcat S70 Skid-Steer Loader

The compact Bobcat® S70 skid-steer loader is small enough to get in the tight spots, yet tough enough to get you out. This agile little workhorse is only 6 ft. tall and 3 ft. wide — the ideal size for scooting through narrow doorways, corridors, aisles, alleys and gates, and for working under low ceilings. It's the perfect loader whenever the job is too big for a shovel or the space is too small for a larger machine.

Features

  • Bob-Tach Attachment System

  • Cab Heater

  • BICS System (Interlock)

  • Developed more than 35 years ago, the standard Bob-Tach® mounting system is time-tested. With it, you can change attachments quickly and easily. Use a bucket, auger, landscape rake, grapple and other attachments throughout your day.

  • Backup Alarm

  • Parking Brake

  • Top Window

  • Spark Arrestor Muffler

  • Lift-Arm Support

  • Operating Lights

  • Sound Option

  • Auxiliary Hydraulics

  • Seat Belt

  • Hydraulic Bucket Positioning

  • Suspension Seat

  • Horn

  • Adjustable Seat

  • With two lift path options, Bobcat® skid-steer loaders have you covered. Vertical lift path machines provide more reach at full lift height, while radius lift path models offer maximum reach at truck bed height. The durable and patented single-plane design reduces side-to-side lift arm movement and minimizes load on the pins.

  • Rear Window

  • Cab Enclosure

Specifications

Auxiliary High Flow :
n/a
Auxiliary Std Flow :
9.8 gal/min
Emissions Tier (EPA) :
Tier 4
Engine Cooling :
Liquid
Engine Fuel :
Diesel
Fuel Tank :
6.5 gal
Height :
71.4 in
Height to Bucket Hinge Pin :
94.5 in
Height with Operator Cab :
71.4 in
Horsepower :
23.5 hp
Length :
75.6 in
Length with Standard Bucket :
97.3 in
Length without Attachment :
75.6 in
Operating Weight :
2892 lb
Rated Operating Capacity (ISO) :
760 lb
Reach @ Maximum Height :
15.8 in
System Relief @ Quick Couplers :
3,000 psi
Tipping Load :
1520 lb
Travel Speed :
6.1 mph
Turning Radius :
58.7 in
Wheelbase :
28.4 in
Width :
35.5 in
Width (with bucket) :
36 in
  • Features

    Features

    • Bob-Tach Attachment System

    • Cab Heater

    • BICS System (Interlock)

    • Developed more than 35 years ago, the standard Bob-Tach® mounting system is time-tested. With it, you can change attachments quickly and easily. Use a bucket, auger, landscape rake, grapple and other attachments throughout your day.

    • Backup Alarm

    • Parking Brake

    • Top Window

    • Spark Arrestor Muffler

    • Lift-Arm Support

    • Operating Lights

    • Sound Option

    • Auxiliary Hydraulics

    • Seat Belt

    • Hydraulic Bucket Positioning

    • Suspension Seat

    • Horn

    • Adjustable Seat

    • With two lift path options, Bobcat® skid-steer loaders have you covered. Vertical lift path machines provide more reach at full lift height, while radius lift path models offer maximum reach at truck bed height. The durable and patented single-plane design reduces side-to-side lift arm movement and minimizes load on the pins.

    • Rear Window

    • Cab Enclosure

  • Specifications

    Specifications

    Auxiliary High Flow :
    n/a
    Auxiliary Std Flow :
    9.8 gal/min
    Emissions Tier (EPA) :
    Tier 4
    Engine Cooling :
    Liquid
    Engine Fuel :
    Diesel
    Fuel Tank :
    6.5 gal
    Height :
    71.4 in
    Height to Bucket Hinge Pin :
    94.5 in
    Height with Operator Cab :
    71.4 in
    Horsepower :
    23.5 hp
    Length :
    75.6 in
    Length with Standard Bucket :
    97.3 in
    Length without Attachment :
    75.6 in
    Operating Weight :
    2892 lb
    Rated Operating Capacity (ISO) :
    760 lb
    Reach @ Maximum Height :
    15.8 in
    System Relief @ Quick Couplers :
    3,000 psi
    Tipping Load :
    1520 lb
    Travel Speed :
    6.1 mph
    Turning Radius :
    58.7 in
    Wheelbase :
    28.4 in
    Width :
    35.5 in
    Width (with bucket) :
    36 in
