Bobcat Bobcat S70 Skid-Steer Loader
| Make | Bobcat |
| Model | S70 (M2-Series) |
| Type | Skid Steer Loaders |
How can we help?
Description
Bobcat S70 Skid-Steer Loader: Compact Power for Tight-Space Productivity

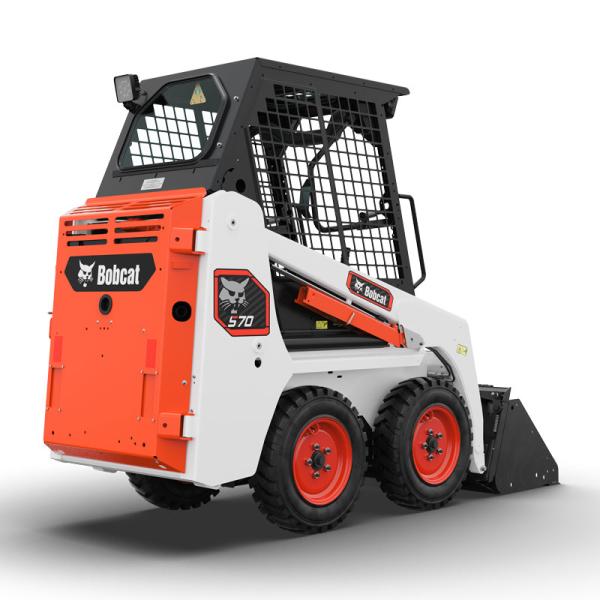

The Bobcat® S70 skid-steer loader is the smallest in the lineup, delivering big performance in a compact package that fits through narrow doorways, gates, and confined job sites.
Key Features:
23.5-hp Tier 4 engine provides efficient power in a small footprint
Just 36 inches wide with a standard bucket, ideal for tight indoor and outdoor jobs
Bob-Tach® mounting system allows fast, easy attachment changes
Compatible with a wide range of attachments including snowblowers, trenchers, and sweepers
Superior maneuverability and visibility help you work confidently in confined areas
Specifications
- Auxiliary High Flow : n/a
- Auxiliary Std Flow : 9.8 gal/min
- Emissions Tier (EPA) : Tier 4
- Engine Cooling : Liquid
- Engine Fuel : Diesel
- Fuel Tank : 6.5 gal
- Height : 71.4 in
- Height to Bucket Hinge Pin : 94.5 in
- Height with Operator Cab : 71.4 in
- Horsepower : 23.5 hp
- Length : 75.6 in
- Length with Standard Bucket : 97.3 in
- Length without Attachment : 75.6 in
- Operating Weight : 2892 lb
- Rated Operating Capacity (ISO) : 760 lb
- Reach @ Maximum Height : 15.8 in
- System Relief @ Quick Couplers : 3,000 psi
- Tipping Load : 1520 lb
- Travel Speed : 6.1 mph
- Turning Radius : 58.7 in
- Wheelbase : 28.4 in
- Width : 35.5 in
- Width (with bucket) : 36 in
Features
- Hydraulic Bucket Positioning
- Top Window
- Bob-Tach Attachment System
- Operating Lights
- Cab Heater
- Horn
- Developed more than 35 years ago, the standard Bob-Tach® mounting system is time-tested. With it, you can change attachments quickly and easily. Use a bucket, auger, landscape rake, grapple and other attachments throughout your day.
- Adjustable Seat
- Spark Arrestor Muffler
- Seat Belt
- BICS System (Interlock)
- Parking Brake
- Suspension Seat
- Cab Enclosure
- With two lift path options, Bobcat® skid-steer loaders have you covered. Vertical lift path machines provide more reach at full lift height, while radius lift path models offer maximum reach at truck bed height. The durable and patented single-plane design reduces side-to-side lift arm movement and minimizes load on the pins.
- Lift-Arm Support
- Sound Option
- Rear Window
- Backup Alarm
- Auxiliary Hydraulics
