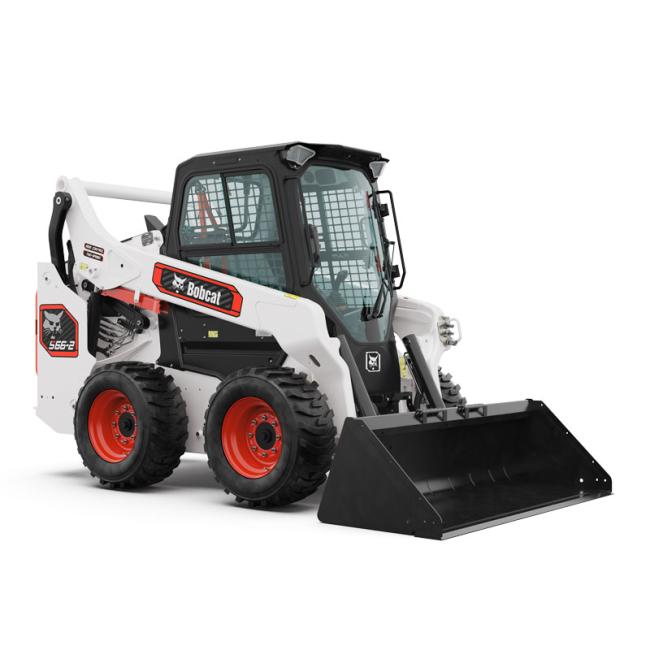

S66 Skid-Steer Loader
S66 Skid-Steer Loader
S66 Skid-Steer Loader
S66 Skid-Steer Loader
S66 Skid-Steer Loader
S66 Skid-Steer Loader

The S66 R-Series skid-steer loader is engineered to take on your toughest jobs, even when working in tight areas. This 74-hp, vertical-lift-path machine delivers the precision turning, skidding and maneuverability you expect in a Bobcat® skid-steer loader, along with the enhanced performance you need to get more done. Its powerful lifting capabilities, fast cycle times, ergonomic controls and an in-cab display featuring machine information and corresponding performance data help maximize your productivity on the most challenging work days.

Features

  • Our attachments truly help you do more than dig. Bobcat offers attachment versatility across carriers combined with unbeatable attachment support from the Bobcat dealer network.

  • Easily install the radio remote control receiver, control mode selector/e-stop box, and other components to any remote-control-ready Bobcat loader. After installing the kit, you can simply operate many loader functions using the transmitter, including the drive, lift, tilt and auxiliary hydraulic functions.

  • Bobcat® loaders are designed with operators in mind. Comfort features include a roomy cab, a heated air-ride seat, automatic heat and air conditioning, ergonomic controls, innovative displays and options to keep you productive on long, challenging days.

  • Change attachments quickly and easily using the time-tested, standard Bob-Tach® mounting system included with every loader or upgrade to the optional Power Bob-Tach system for swapping non-hydraulic attachments without leaving your seat.

  • Bobcat Selectable Joystick Control, or SJC, is becoming the most popular control choice among operators. No other joystick in the industry comes close to delivering the level of customization and control. With SJC, you control your loader and attachments easily and comfortably. They're loaded with many Bobcat-exclusive features.

  • The redesigned Bobcat® engine on R-Series loaders offers a variety of fuel features, including an efficient fuel tank vent filter, fuel filter pressure sensor, improved fuel recirculation value and more to improve performance and uptime to keep you running strong all day long.

  • With Bobcat Standard Controls, available on select models, a lever controls the drive on each side independently, while your feet control the lift arms and bucket. The farther you stroke the lever, the faster you go. The shorter the stroke, the more torque is delivered to the wheels or tracks – allowing maximum power for pushing into a pile. This tried-and-true system is still a popular style of control.

  • R-Series loaders feature a Bobcat® engine. An efficient design provides the performance you need while reducing and simplifying routine maintenance. Thanks to an innovative new fuel system, low fuel levels are more forgiving for busy operators. The engine also improves cold-weather operation and includes a variety of features that make maintenance and service more convenient.

  • Maneuver more confidently. Enhance your productivity. Easily see to the sides of your machine. R-Series loaders offer an optional enclosure that maximizes visibility by reducing steel mesh screens from the side windows. The mesh-free windows are made from 3/8-inch thick polycarbonate with an abrasion-resistant coating to allow the optimal view you demand with the durability you expect.

  • An easy-to-read display panel provides full-featured machine interaction and monitoring capabilities from inside the cab. Run your equipment more efficiently and solve more problems in the field with the innovative IQ display, which supports multiple languages.

  • Time-tested controls on Bobcat® skid-steer loaders and compact track loaders make it easier to work longer and perform precise work. The engine speed control is conveniently located in front of you. Fingertip controls simplify the operation of soil conditioners, sweepers, tillers, buckets, grapples and other attachments. Foot pedals can be adjusted to your preferences.

  • When your engine maintenance is easy to do, your engine maintenance actually gets done. With the redesigned Bobcat® engine, checkpoints are within easy reach. Time is money, and preventive maintenance is quick and simple with R-Series loaders.

  • On R-Series loaders, the battery is located under the cab – separated from the engine compartment. Just lift the one-piece cab away for easy access. It's a convenient service location that protects the condition of your battery and provides more room for component access in the engine compartment. A remote terminal, located in the engine compartment, makes it easy to charge the battery or jumpstart the loader if needed.

  • Several attachments require control of more than one function, and our small, seven-pin attachment harness activates power and fingertip control functions while eliminating the need for the mechanical relays used on other loaders. Controls are fully integrated with your Bobcat® loader for a clean look and protected routing.

  • When it's time for maintenance or repairs, simply lift the entire R-Series cab out of the way using the hardware on the exterior of the cab.

  • When not carrying a load, Bobcat® skid-steer loaders deliver balanced, easy turning for ideal performance. They offer effective turning and skidding, reduced fuel consumption and power requirements, increased drive train and tire life, and less wear and tear compared to "flat-footed" machines sold by other manufacturers.

  • Quickly secure your skid-steer loader or compact track loader without searching for hard-to-reach tie-downs. The tie-downs are easy to locate and use.

  • Bobcat features the only maintenance-free chaincase with exclusive fixed axle tubes, stronger axles, and fully sealed bearings.

  • The biggest advantage of our Tier 4 solution is simplicity. Bobcat engines meet Tier 4 regulations without a diesel particulate filter (DPF). This reduces downtime that occurs with DPF regeneration and long-term DPF maintenance costs. That allows operators to focus on working.

  • The 2-Speed travel option boosts your top travel speed. Reduce your travel time across jobsites, limit the need to load and unload your machine on a trailer, and shorten your long-haul tasks.

  • Maintenance is easier and faster with easy-to-access grease zerk locations on critical pivot points. Avoid laying on the ground or standing on tracks to grease the pins.

  • A one-piece, sealed and pressurized cab on R-Series loaders provides a near-seamless interior for a new level of operator comfort. The cab design along with improved seals help reduce noise and vibration for enhanced sound isolation. There are no maintenance items under the rear hood for improved access to hose and electronic connections and major components. Most service items can be accessed without raising the lift arm.

  • Automatic ride control reduces material spillage, allowing you to travel at faster speeds across rough terrain. Thanks to its dampening effect, the option also increases operator comfort by offering a smoother ride.

  • With the most advanced in-cab display for compact equipment, you’ll experience detailed machine information and unprecedented device connectivity. The optional Touch Display features a 800x480-pixel display resolution. Operators can easily view and toggle through machine performance and information on the wide, easy-to-use touchscreen that supports seven languages. Plus, it’s waterproof and hardened to reduce scratching.

  • R-Series loaders won't let you down. Critical components are protected from jobsite hazards, vibrations and tough conditions to keep your machine in operation and you on the job.

  • The cast-steel lift arm sections of the R-Series loaders are stronger to ensure optimal performance. Combined with the optimized lift-arm linkage, you can handle more challenging jobs with greater confidence and ease.

  • Dual-direction bucket positioning, offered on R-Series loaders, keeps the load at a consistent angle throughout the lift cycle – both up and down – to reduce spilling which increases efficiency and improves ease of operation.

  • Loader seats are upholstered in comfortable, breathable cloth and equipped with operator-controlled heat for warmth in cold weather. This optional seat provides peak operator comfort with air suspension that adjusts to your weight, smoothing out bumps on the jobsite for an industry-leading operator experience.

  • If you work on a busy jobsite, you know that noise can be a daily frustration. Bobcat® loaders include many sound dampening features that keep your cab quieter.

  • Check your hydraulic oil level quickly and easily as you walk by your machine. Keep an eye on hydraulic oil levels and simplify your daily checks.

  • As operators trust compact equipment to run longer and do bigger, more difficult jobs, better cooling is essential. The R-Series cooling system is completely redesigned for optimal operation and maximum uptime.

  • Bobcat® skid-steer loaders and compact track loaders are engineered with large swing-open doors, and a lowered door threshold, which provide ample headroom for exit and entry. Inside, even tall operators will be comfortable with plenty of headroom. Additionally, the swing-open door doesn't take up cab space and can be removed without tools.

  • R-Series loaders not only look tougher – they are tougher. Bobcat® lift arms feature cast-steel construction for increased material strength and rigidity. Cast-steel allows more material where it's needed, which provides greater strength while enabling a slimmer profile arm that also enhances visibility.

  • If you work on a busy jobsite, you know that noise can be a daily frustration. Smooth, quick Bobcat® lift cylinders are automatically cushioned at the fully lowered position. The tilt cylinders are also cushioned at the full dump and rollback positions. This reduces noise and increases comfort during operation.

  • R-Series loaders maximize open viewing areas by minimizing and removing surfaces and structures that intrude on your sightlines. Thanks to innovative engineering, robust materials and cutting-edge manufacturing, you get the best view on the jobsite.

  • When it comes to performance, Bobcat® loaders are in a class by themselves. Each component – including the engine, pumps and hydraulic system – is engineered to deliver maximum hydraulic performance so you can work quicker, lift more and outperform your competition.

Specifications

Auxiliary High Flow :
26.9 gal/min
Auxiliary Std Flow :
17.6 gal/min
Emissions Tier (EPA) :
Tier 4
Engine Cooling :
Liquid
Engine Fuel :
Diesel
Fuel Tank :
28.3 gal
Height :
80.5 in
Height to Bucket Hinge Pin :
120 in
Height with Operator Cab :
80.5 in
Horsepower :
74 hp
Length :
134.9 in
Length with Standard Bucket :
134.9 in
Length without Attachment :
107 in
Operating Weight :
6947 lb
Rated Operating Capacity (ISO) :
2,400 lb
Reach @ Maximum Height :
34.2 in
System Relief @ Quick Couplers :
3,450 psi
Tipping Load :
4800 lb
Travel Speed :
7.4 mph
Travel Speed (2-speed option) :
11 mph
Turbocharged Engine :
Yes
Turning Radius :
80.1 in
Wheelbase :
44.6 in
Width :
64.6 in
Width (with bucket) :
68 in
