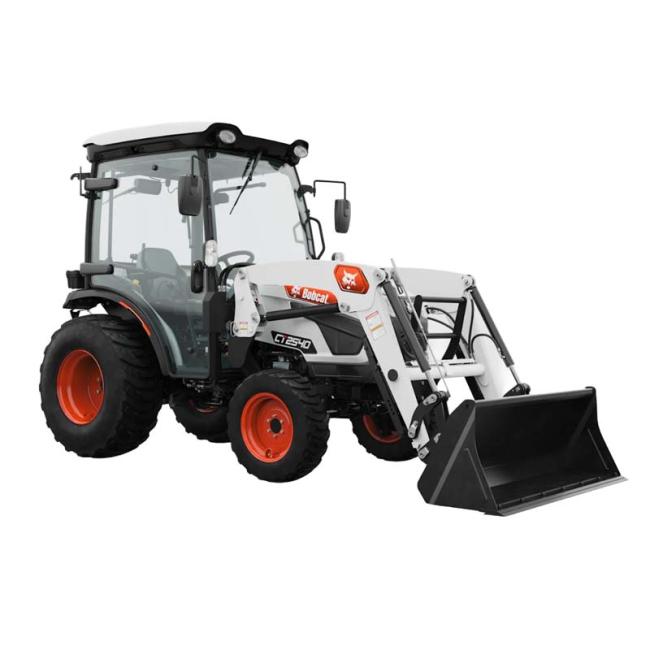

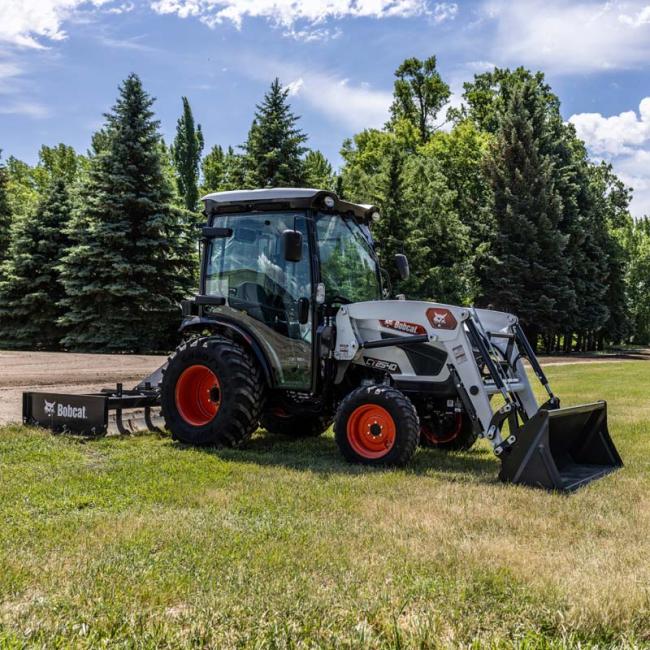

CT2540 Compact Tractor

This 40-hp Bobcat® compact tractor model features a fully enclosed tractor cab for unbeatable comfort working on hot summer days or while clearing snow in harsh, cold weather. This model offers all the standard features you expect on a compact tractor, including four-wheel drive, Category 1 3-point hitch, power steering and a hydrostatic transmission. Plus it brings the power, maneuverability and versatility to tackle a variety of big challenges in tight spaces around your small farm or property.

Features

  • A centralized location for fuses and relays simplifies the need to replace fuses or troubleshoot electronics.

  • Different jobs require different tires to ensure you're getting the best performance from your tractor. Bobcat offers three tire options to match the work you do, whether it's towing heavy loads and pulling implements, working on lawns, or working in a variety of ground conditions and applications that require more traction.

  • Every day brings a new challenge on the farm or acreage. Bobcat® compact tractors offer maximum maneuverability to take on those challenges. Whether you need high clearance to get through rough terrain, four-wheel drive for extra traction or a tight turning radius to work around obstacles, you'll find the performance you need to get to the work.

  • There are no side panels to remove when accessing the engine compartment. It’s quick and easy. The hood is easy to lift thanks to the air cylinder assist. This best-in-class maintenance accessibility means virtually all of the major service points are easy to see and easy to reach.

  • Independent power take-off (PTO) allows you to simply flip a switch to engage or disengage the PTO without stopping the tractor or using the clutch. This comes in handy for tasks that require frequent stopping and restarting of your implement, including moving from one hole to the next as you use the auger.

  • Till your garden and plant a spring food plot. Clear weeds from the ditches and pastures. Dig holes for fence posts or trees in all types of soil conditions. Mow your acreage in an afternoon. You can do it all with power take-off (PTO). Rear PTO is standard on all Bobcat® compact tractors, and mid PTO is standard on select models and optional on all other models except on 4000 Platform models with a manual transmission. PTO coupled with the 3-point hitch allows you to operate numerous implements with ease.

  • Work lights on Bobcat® compact tractors give you the visibility you need to keep going. Bright headlights illuminate the work in front of you, giving you high visibility in low light conditions. The LED tail lamp with a long bulb life makes sure you’re seen from behind as you travel around your acreage, trails or back roads.

  • The linked pedal option is available on tractor models starting at the 2000 Platform and above that have a hydrostatic or electronic hydrostatic transmission to increase engine rpm as you engage the travel pedal, for operation that feels similar to driving a car. This makes for intuitive front-end loader control and enhances the ease of use on a variety of other jobs.

  • Climb in the factory-installed enclosed cab, close the door and enjoy maximum comfort whether you’re mowing in the heat of summer or moving snow on a cold winter morning. Heat, air conditioning, panoramic visibility and other creature comforts come standard with the radio-ready cab.

  • When you’re comfortable, long days and a long list of projects are no problem. Bobcat® compact tractors are loaded with comfort features and easy-to-use controls so you can put in as many hours as you want to and not feel it the next day. Look for standard features, including ergonomic controls, suspension seat and low-noise, low-vibration engines, plus extras that make these machines easy to use and easy to enjoy.

  • Bobcat provides you access to a world of implements and attachments – so you can get the most work from your tractor investment. Whether it’s moving snow, installing a fence or taking care of animals, when you have the right tractor and the right implement or attachment, there is virtually no task that’s beyond your ability.

  • Bobcat® compact tractors are designed to be easy to use with controls that help you do more work with less effort. Intuitive control levers are easy to use, and extras like power steering, cruise control and more help you operate the tractor and implements with confidence.

  • Regular maintenance is a big part of keeping your property looking its best – and key to keeping your Bobcat® compact tractor running at peak performance. An accessible engine compartment makes it easy to keep up on daily maintenance. All daily checks, engine fluid fills and filters are located on one side of the engine, making it easy to keep your tractor running smoothly with minimal effort.

  • The hydrostatic transmission (3-range HST) uses hydraulic pressure to change speed, operating similar to a vehicle. You'll only need to stop moving if you want to change your range. It's a good choice for frequent front-end loader work such as cleaning stalls, mowing or maneuvering in tight areas. A simple twin-pedal design enables quick and easy direction changes: One pedal moves you forward, the other moves you in reverse. Its ease of operation makes it a good choice for novice drivers. Read more about all Bobcat® compact tractor transmission options.

  • The 3-point hitch transforms your Bobcat® tractor into a do-it-all machine to mow, till, grade a driveway, rake debris and weeds, move snow, and more. It’s compatible with all Category 1 implements and includes features that make it easy to hook up implements.

  • Bobcat® compact tractors deliver leading drawbar towing power and force for heavy towing performance that beats many other tractor brands. The hitch is adjustable to provide towing flexibility and convenience.

  • A ROPS, standard on all non-cab models, is designed to protect the operator in the event of a rollover (when the ROPS is locked in the up position and the seatbelt is fastened). The foldable ROPS can be temporarily lowered when driving under trees, into garages or in other low-clearance areas.

  • Count on excellent lift capacities to increase your implement capabilities and improve your performance. Many Bobcat® tractors offer the highest 3-point hitch lift capacity in their size.

Specifications

3-Point Hitch :
Category 1
3-pt Lift Control Type :
Hydraulic Position Control System
Brake Type :
Wet Multi Disc
Bucket Width :
5' 0"
Displacement:
111 in³
Emissions Tier (EPA) :
Tier 4
Engine Model :
3F-TM(H)4
Front Tire Size :
Front AG.(TURF, INDUSTRIAL) 7-16 (28 x 8.5-15/6, 27X8.5-15)
Fuel Tank :
9 gal
Gross HP :
37.6 hp
Ground Clearance :
12.3 in
Height:
91 in
Horsepower :
37.6 hp
Length :
120.9 in
Lift Capacity @ 500mm ahead of bkt pivot :
1,389 lb
Lift Capacity at 24" behind Lift Point :
1,631 lb
Loader Lift Height :
8' 4"
Mid PTO - RPM :
1988
Number of Cylinders :
3
Operating Weight :
4,381 lb
PTO HP :
31.9 hp
Rear PTO - RPM :
540
Rear PTO System :
Independent
Rear Tire Size :
Rear AG.(TURF, INDUSTRIAL) 11.2-24 (41 x 14-20/4, 15-19.5)
RPM :
2750
Total Hydraulic Flow :
11.4 gal/min
Transmission Type :
Infinite, 3 Range Hydrostatic
Travel Speed :
14.4 mph
Travel Speed - Reverse :
10.1 mph
Turning Radius :
8' 9"
Wheelbase :
5' 5"
Width :
64 in
