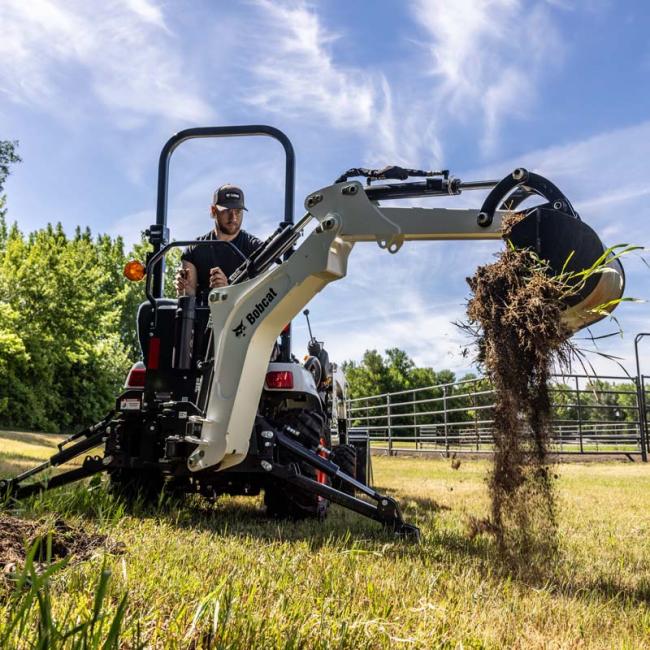

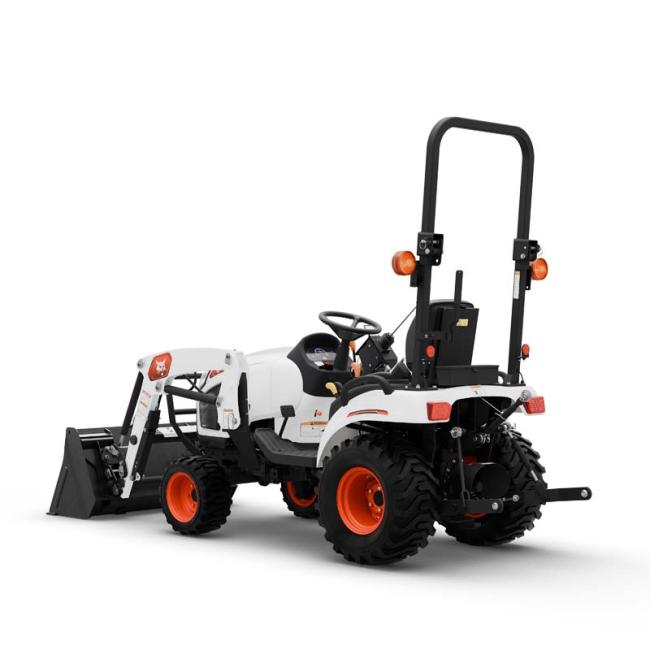

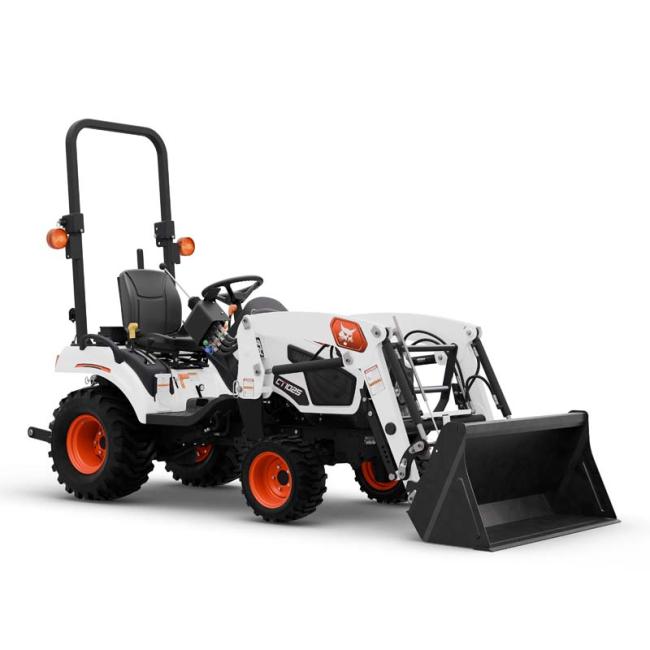

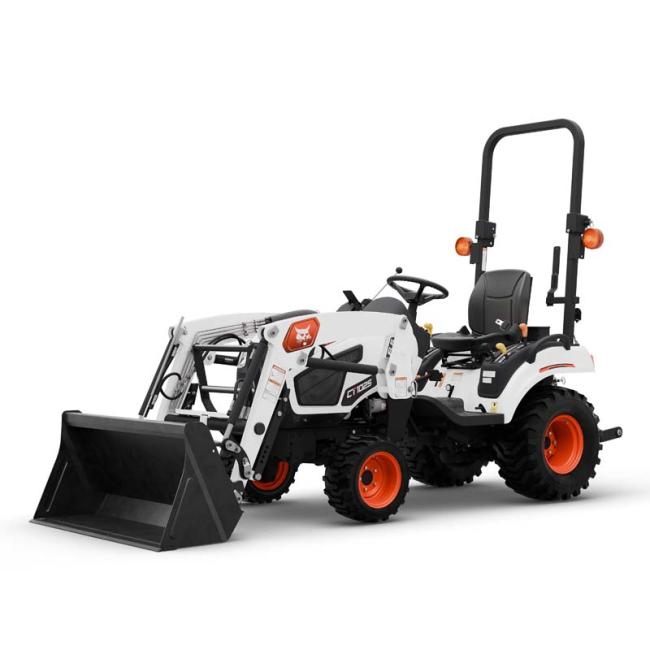

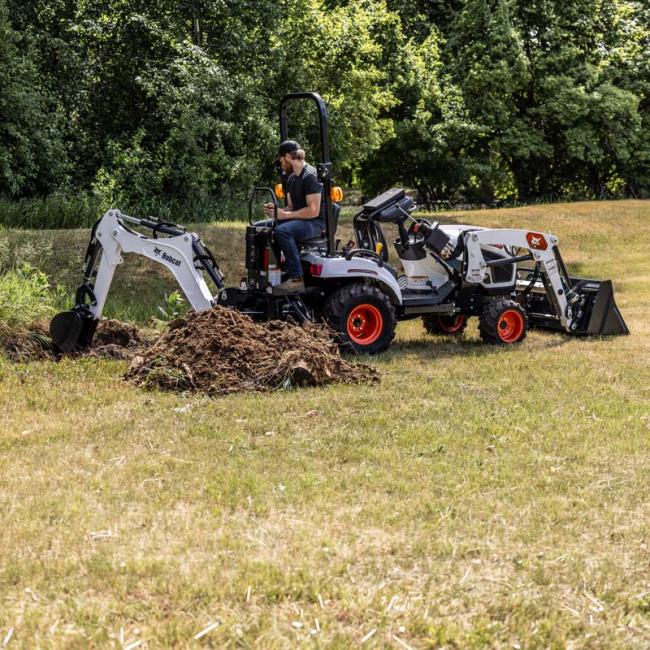

CT1025 Compact Tractor

The Bobcat® CT1025 packs a lot of power into a small frame size to efficiently mow and maintain your small acreage. This sub-compact, 25-hp diesel tractor is larger than lawn and garden tractors and includes a hydrostatic transmission, four-wheel drive and a Category 1 3-point hitch. It’s easy to operate and the perfect solution for light-duty projects around your property.

Features

  • There are no side panels to remove when accessing the engine compartment. It’s quick and easy. The hood is easy to lift thanks to the air cylinder assist. This best-in-class maintenance accessibility means virtually all of the major service points are easy to see and easy to reach.

  • Independent power take-off (PTO) allows you to simply flip a switch to engage or disengage the PTO without stopping the tractor or using the clutch. This comes in handy for tasks that require frequent stopping and restarting of your implement, including moving from one hole to the next as you use the auger.

  • When you’re comfortable, long days and a long list of projects are no problem. Bobcat® compact tractors are loaded with comfort features and easy-to-use controls so you can put in as many hours as you want to and not feel it the next day. Look for standard features, including ergonomic controls, suspension seat and low-noise, low-vibration engines, plus extras that make these machines easy to use and easy to enjoy.

  • Till your garden and plant a spring food plot. Clear weeds from the ditches and pastures. Dig holes for fence posts or trees in all types of soil conditions. Mow your acreage in an afternoon. You can do it all with power take-off (PTO). Rear PTO is standard on all Bobcat® compact tractors, and mid PTO is standard on select models and optional on all other models except on 4000 Platform models with a manual transmission. PTO coupled with the 3-point hitch allows you to operate numerous implements with ease.

  • Bobcat® compact tractors are designed to be easy to use with controls that help you do more work with less effort. Intuitive control levers are easy to use, and extras like power steering, cruise control and more help you operate the tractor and implements with confidence.

  • Different jobs require different tires to ensure you're getting the best performance from your tractor. Bobcat offers three tire options to match the work you do, whether it's towing heavy loads and pulling implements, working on lawns, or working in a variety of ground conditions and applications that require more traction.

  • The hydrostatic transmission (2-range HST) uses hydraulic pressure to change speed, operating similar to a vehicle. You'll only need to stop moving if you want to change your range. This is a good transmission choice if you're doing frequent front-end loader work, mowing or clearing brush as you maneuver through wooded areas. Its ease of operation also makes it a good choice for novice drivers. Forward and reverse are controlled by foot pedals. Read more about all Bobcat® compact tractor transmission options.

  • Regular maintenance is a big part of keeping your property looking its best – and key to keeping your Bobcat® compact tractor running at peak performance. An accessible engine compartment makes it easy to keep up on daily maintenance. All daily checks, engine fluid fills and filters are located on one side of the engine, making it easy to keep your tractor running smoothly with minimal effort.

  • Bobcat® compact tractors deliver leading drawbar towing power and force for heavy towing performance that beats many other tractor brands. The hitch is adjustable to provide towing flexibility and convenience.

  • A ROPS, standard on all non-cab models, is designed to protect the operator in the event of a rollover (when the ROPS is locked in the up position and the seatbelt is fastened). The foldable ROPS can be temporarily lowered when driving under trees, into garages or in other low-clearance areas.

  • Work lights on Bobcat® compact tractors give you the visibility you need to keep going. Bright headlights illuminate the work in front of you, giving you high visibility in low light conditions. The LED tail lamp with a long bulb life makes sure you’re seen from behind as you travel around your acreage, trails or back roads.

  • A centralized location for fuses and relays simplifies the need to replace fuses or troubleshoot electronics.

  • Every day brings a new challenge on the farm or acreage. Bobcat® compact tractors offer maximum maneuverability to take on those challenges. Whether you need high clearance to get through rough terrain, four-wheel drive for extra traction or a tight turning radius to work around obstacles, you'll find the performance you need to get to the work.

  • The 3-point hitch transforms your Bobcat® tractor into a do-it-all machine to mow, till, grade a driveway, rake debris and weeds, move snow, and more. It’s compatible with all Category 1 implements and includes features that make it easy to hook up implements.

  • Count on excellent lift capacities to increase your implement capabilities and improve your performance. Many Bobcat® tractors offer the highest 3-point hitch lift capacity in their size.

Specifications

3-Point Hitch :
Category 1
3-pt Lift Control Type :
Hydraulic Position Control System
Brake Type :
We Multi Disc
Bucket Width :
4' 0"
Displacement :
69 in³
Emissions Tier (EPA) :
Tier 4
Engine Model :
S773L-F21
Front Tire Size :
Front AG.(TURF, INDUSTRIAL) 18X8.5-10(18X8.5-10)
Fuel Tank :
7.1 gal
Gross HP :
24.5 hp
Ground Clearance :
6.3 in
Height :
87.6 in
Horsepower :
24.5 hp
Length :
99.3 in
Lift Capacity @ 500mm ahead of bkt pivot :
702 lb
Lift Capacity at 24" behind Lift Point :
700 lb
Loader Lift Height :
6' 0"
Mid PTO - RPM :
2200
Number of Cylinders :
3
Operating Weight :
1,488 lb
PTO HP :
19.4 hp
Rear PTO - RPM :
540
Rear PTO System :
Independent
Rear Tire Size :
Rear AG.(TURF, INDUSTRIAL) 26X12.00-12(26X12.00-12)
RPM :
3230
Total Hydraulic Flow :
6.4 gal/min
Transmission Type :
Infinite, 2 Range Hydrostatic
Travel Speed :
10.1 mph
Travel Speed - Reverse :
6.8 mph
Turning Radius :
8' 3"
Wheelbase :
4' 7"
Width :
46 in
