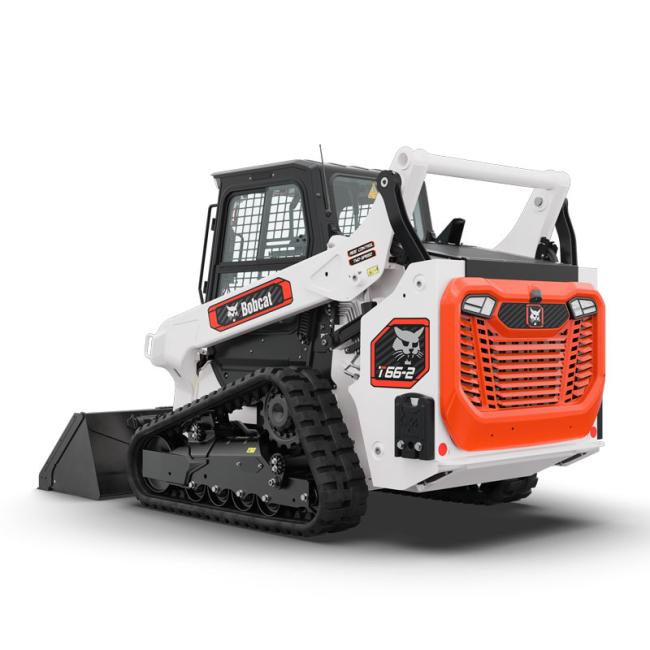

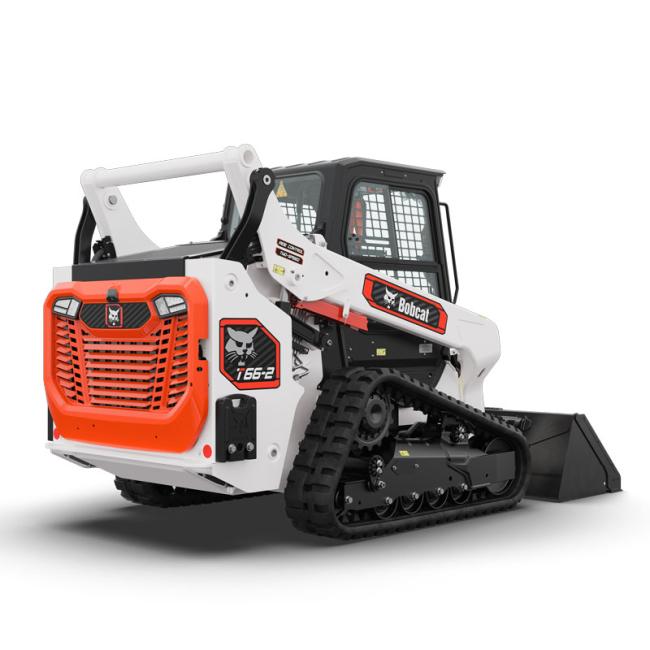

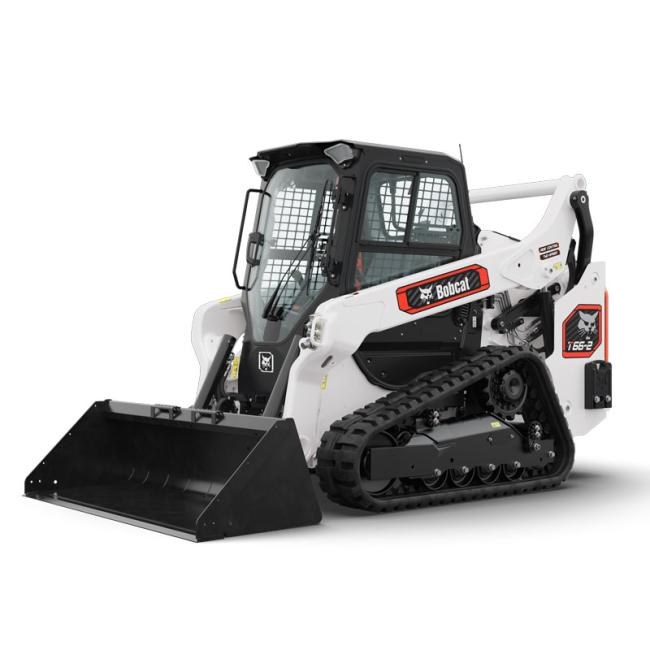

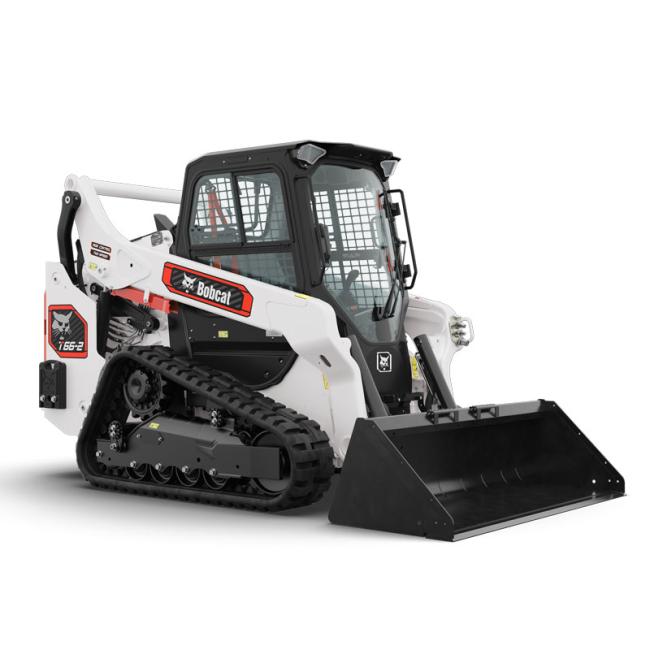

T66 Compact Track Loader
T66 Compact Track Loader
T66 Compact Track Loader
T66 Compact Track Loader
T66 Compact Track Loader
T66 Compact Track Loader
T66 Compact Track Loader
T66 Compact Track Loader
T66 Compact Track Loader
T66 Compact Track Loader

No matter how extreme your working conditions are, the vertical-lift-path Bobcat® T66 compact track loader tackles tough jobs where other equipment can’t.

  • Increased lifting capabilities

  • Powerful hydraulic performance

  • Fast cycle times

  • Premium comfort


Features

  • The roomy T66 cab provides a sealed and pressurized environment complete with an available heated air-ride seat, clear-side enclosure, automatic heat, and air conditioning, and an innovative display with machine information and performance data

  • The 74-hp T66 compact track loader includes a redesigned Bobcat inline engine and direct-drive system, lift arms with cast-steel construction, and improved cooling performance.

  • The vertical-lift-path T66 delivers powerful hydraulics and breakout forces, fast cycle times, and increased lifting capabilities.

Specifications

Auxiliary High Flow:
26.9 gal/min
Auxiliary Std Flow:
17.6 gal/min
Emissions Tier (EPA):
Tier 4
Engine Cooling:
Liquid
Engine Fuel:
Diesel
Fuel Tank:
28.3 gal
Ground Pressure (Rubber):
5.9 psi
Height:
80.5 in
Height to Bucket Hinge Pin:
120 in
Height with Operator Cab:
80.5 in
Horsepower:
74 hp
Length:
134.9 in
Length of track on ground:
54.3 in
Length with Standard Bucket:
134.9 in
Length without Attachment:
107 in
Operating Capacity (50% of Tip):
3500 lb
Operating Weight:
8927 lb
Rated Operating Capacity (ISO):
2,450 lb
Reach @ Maximum Height:
34.2 in
System Relief @ Quick Couplers:
3,450 psi
Tipping Load:
7000 lb
Track Width:
12.6 in
Track Width - Optional:
15.7 in
Travel Speed:
7.2 mph
Travel Speed (2-speed option):
10.2 mph
Turning Radius:
81.5 in
Width:
67 in
Width (with bucket):
68 in
  • Features

    Features

    • The roomy T66 cab provides a sealed and pressurized environment complete with an available heated air-ride seat, clear-side enclosure, automatic heat, and air conditioning, and an innovative display with machine information and performance data

    • The 74-hp T66 compact track loader includes a redesigned Bobcat inline engine and direct-drive system, lift arms with cast-steel construction, and improved cooling performance.

    • The vertical-lift-path T66 delivers powerful hydraulics and breakout forces, fast cycle times, and increased lifting capabilities.

  • Specifications

    Specifications

    Auxiliary High Flow:
    26.9 gal/min
    Auxiliary Std Flow:
    17.6 gal/min
    Emissions Tier (EPA):
    Tier 4
    Engine Cooling:
    Liquid
    Engine Fuel:
    Diesel
    Fuel Tank:
    28.3 gal
    Ground Pressure (Rubber):
    5.9 psi
    Height:
    80.5 in
    Height to Bucket Hinge Pin:
    120 in
    Height with Operator Cab:
    80.5 in
    Horsepower:
    74 hp
    Length:
    134.9 in
    Length of track on ground:
    54.3 in
    Length with Standard Bucket:
    134.9 in
    Length without Attachment:
    107 in
    Operating Capacity (50% of Tip):
    3500 lb
    Operating Weight:
    8927 lb
    Rated Operating Capacity (ISO):
    2,450 lb
    Reach @ Maximum Height:
    34.2 in
    System Relief @ Quick Couplers:
    3,450 psi
    Tipping Load:
    7000 lb
    Track Width:
    12.6 in
    Track Width - Optional:
    15.7 in
    Travel Speed:
    7.2 mph
    Travel Speed (2-speed option):
    10.2 mph
    Turning Radius:
    81.5 in
    Width:
    67 in
    Width (with bucket):
    68 in
