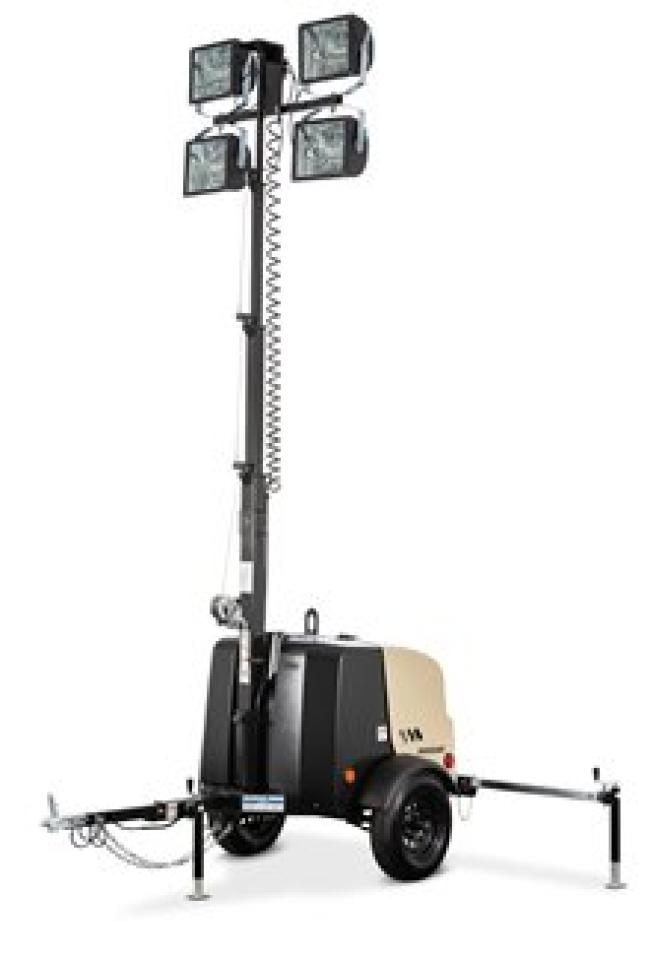

LCV8WKUB-60Hz-T4F Light Tower

Light towers from Doosan Portable Power are built with the professional-grade reliability and durability you require. Our light towers feature dependable diesel engines and produce a bright coverage area. Available LED lamps extend machine run-time, are maintenance-free, and rated for a 50,000-hour life. If your workday doesn't end, or your event heats up after the sun goes down, then you need to put the power of our light towers to work for you.

Features

  • Doosan Portable Power’s first vertical mast light tower, the LCV8, has a compact footprint for increased jobsite mobility and cost-effective transport. The LCV8 light tower features a Kubota engine paired with a high output 8 kW alternator, providing light and power concurrently with a class-leading run-time of 75 hours. Our clamshell-style canopy is made of a durable, lightweight composite material that lifts easily for access to service points. The engine’s 1000-hr oil change interval helps to reduce downtime and maintenance costs.

Specifications

120V GFCI Duplex (NEMA 5-20R):
2 × 20A
230V EC 123-16:
240V Twist lock (NEMA L6-30R):
1 × 30A
Available AC Voltage - Single Phase - V:
120/240
Available Frequency - Hz:
60
Cooling System:
Water / Glycol
DC System Voltage / Battery Capacity:
12 VDC / 520 CCA
Fuel Type:
#2 Ultra-Low Sulfur Diesel
Height (w/ Tower Deployed) - ft (m):
23 (7)
Height (w/ Tower in Transport Position) - ft (m):
8.4 (2.6)
Length (Drawbar Down) - in (mm):
109 (2768)
Length (Drawbar Up) - in (mm):
82 (2083)
Make/Model:
Kubota D1105
Number of Cylinders / Displacement – cu in (L):
3 / 68.53 (1.123)
Number of Units per 48 ft Flatbed:
17
Operating Weight - lb (kg):
1793 (815)
Power @ Rated Speed - bhp (kW):
15.4 (11.5) @ 1800 RPM
Prime Power Rating, 1.0 PF - kW:
8
Runtime Full Load - hrs:
75
Runtime with 4 LED Lights - hrs:
180
Runtime with 4 Metal Halide Lights - hrs:
97
Shipping Weight - lb (kg):
1430 (650)
Track Width - in (mm):
47.4 (1206)
Usable Fuel Capacity – gal (L):
52.4 (198.4)
Width (Standard) - in (mm:
55 (1397)
Width (w/ Outriggers Deployed) - in (mm):
121 (3084)
