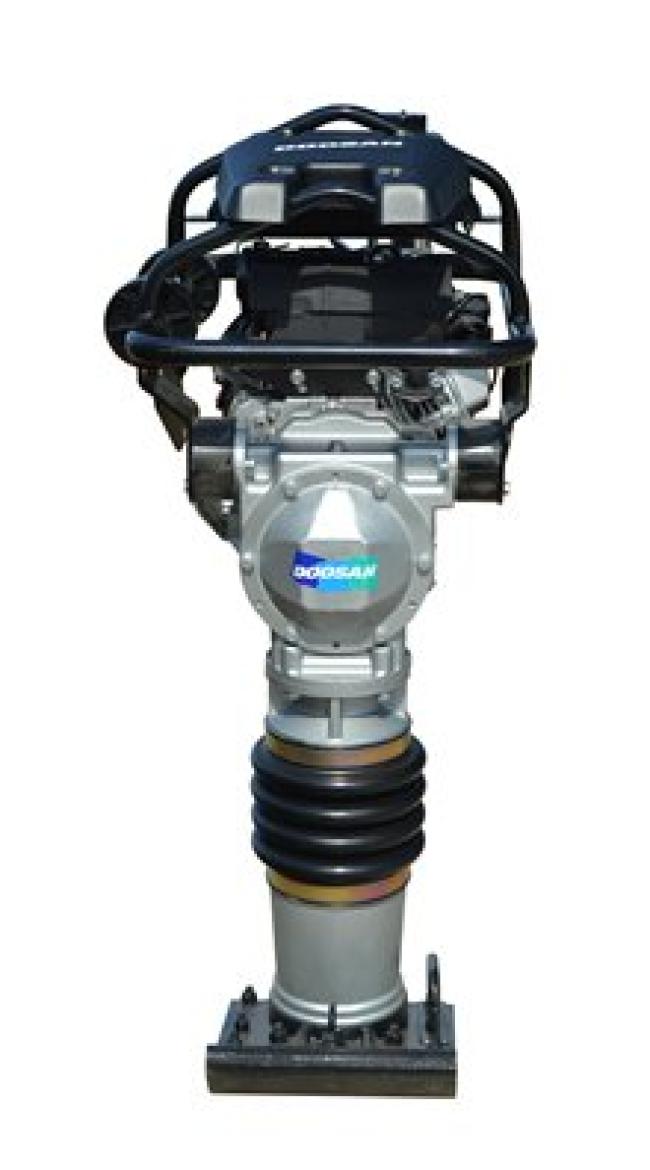

Doosan RX-344H Upright Rammer
Compaction Tools
How can we help?
(330) 799-2555
Features
-
The RH-344H upright rammer delivers 3,400 lbs. of force at 600-650 blows a minute. This impressive performance is achieved thanks to a dependable GX120 Honda engine. Impact force is applied to the compaction material through durable wooden foot, reinforced with a heavy steel plate for extended machine life.
Specifications
Area Capacity Per Hour - sq ft (m²): |
2530 (235) |
Blows per Minute: |
600 - 650 |
Engine Speed - rpm: |
3600 |
Fuel Tank Capacity - qt (L): |
2.6 (2.5) |
Height - in (mm): |
43.9 (1115) |
Impact Force - lb (kN): |
3400 (15.1) |
Length - in (mm): |
26.6 (675) |
Manufacturer, Type: |
Honda, gasoline |
Max Recommended Compaction Depth - in (mm): |
24 (610) |
Max. Horsepower - hp (kW): |
3.5 (2.6) |
Model: |
GX120 |
Operating Weight - lb (kg): |
157 (72) |
Plate Size - (w x l) in (mm): |
11 x 13 (280 x 330) |
Travel Speed - fpm (m/min): |
39 - 46 (12 - 14) |
Width - in (mm): |
18.3 (466) |
