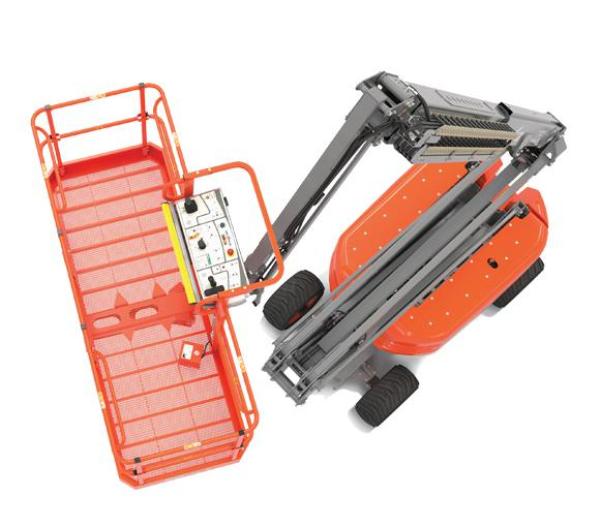

Skyjack SJ85 AJ
| Make | Skyjack |
| Model | SJ85 AJ |
| Type | Boom Lifts |
How can we help?
Models
Overall Specifications
Work Height
91' (27.74 m)
Platform Height
85' (25.91 m)
Horizontal Reach
56' (17.07 m)
Up and Over Height
34' (10.36 m)
Platform Size
36” x 96” (0.91 x 2.4 m)
Stowed Width
8’ 2" (2.49 m)
Tailswing
3' (0.86m)
Stowed Height
8' 9" (2.67 m)
Stowed Length
38’ 2” (11.63 m)
Ground Clearance
13” (0.34 m)
Wheelbase
9’ 4" (2.84 m)
Rotation
360°
Platform Rotation
170°
Jib Length
5’ 6” (1.68 m)
Jib Range +/-
+65° / -60°
Weight
37,400 lbs (16,965 kg)
Gradeability
45%
Turning Radius (Inside)
10’ (3.05 m)
Turning Radius (Outside)
20’ 5” (6.22 m)
Axle Oscillation
4” (10.16 cm)
Drive Speed (High speed)
3 mph (4.8 km/h)
Capacity
500 / 750 lbs (227 / 340 kg)
Maximum # of Persons
2 / 3
Tire Type
Grip lug foam-filled
Tire Size
18-625
Diesel Engine
74 HP
Fuel Tank
30.4 gal. (115 L)
Hydraulic Reservoir
45 gal. (170 L)
Features
- Operator controlled locking rear differential and limited
- Tie down/lifting lugs
- 2 Year Gold Leaf Warranty (5 year structural warranty)
- Relay based control system
- All motion alarm
- 360° continuous turret rotation
- Deutz TD2.9L4 diesel engine
- Hourmeter
- Overload sensing system
- Telematics ready
- Swing out engine tray
- SpeedyReach™ functionality
- SkyRiser™ functionality
- Color coded and numbered wiring
- Drivable at full height
- Secondary Guarding (SGE)
- EasyDrive™ direction sensing drive and steer controls
- Proportional controls
- Swing up cowlings
- Axle based 4WD system
- Operator horn
- 110V AC outlet on platform with GFI
- Tri-entry sliding mid-rails
- 18 x 625 grip lug foam-filled tires
- Modular platform railing system
- 45% Gradeability
- Oscillating axle
- Wet disc SAHR brakes (front and rear axle)
- slip front differential
